Description

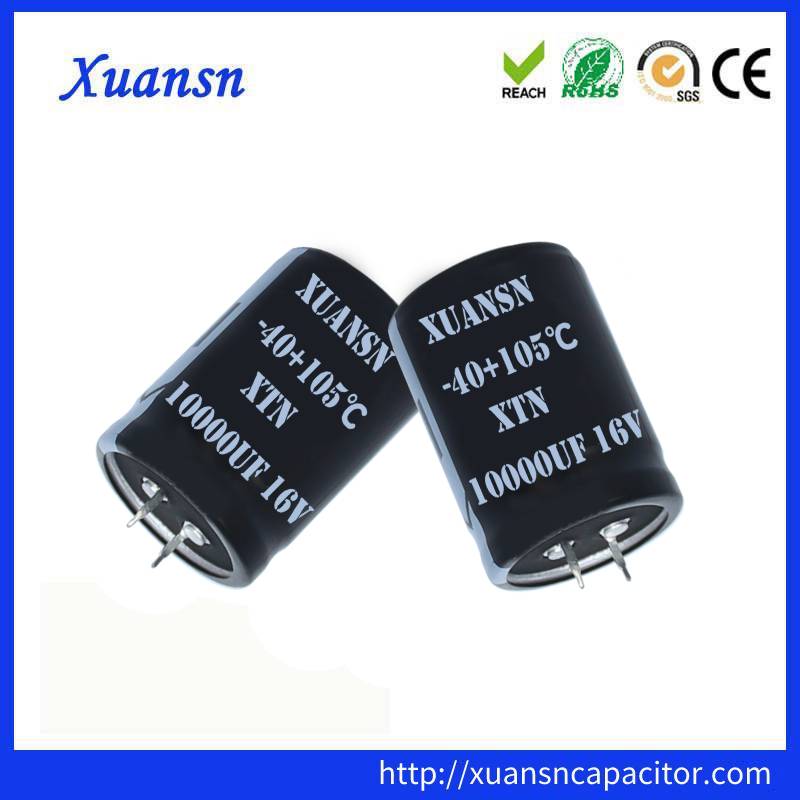

10000uf 16v capacitor are solder pin type electrolytic capacitors. It has excellent high frequency, long life, high reliability, high ripple current characteristics, and the size can be changed. Applications: suitable for industrial-grade inverters, servo control, switching power supplies, PC power supplies, and industrial power supplies. And there are super excellent high frequency, super long life, high ripple current, high reliability characteristics.

10000UF 16V Electrolytic Capacitor-Features

1.Highly reliable capacitors that withstand under high ripple current.
2.Two or three dimensions with same ratings.
3.Aluminum case designed explosion-proof vent.
4.Best for switching power supplies.

Parameters Table

Item	Characteristics
Temperature Range	-40-105℃
Specification	10000UF16V
Capacitance Tolerance	±20% (M) (at 20°C, 120Hz)
Dissipation Factor (tanδ)	tanδ (max.)=0.50 (at 20°C, 120Hz)
Rated ripple current (Arms/105°C, 120Hz)	2.79
Low Temperature Characteristics (Max. Impedance Ratio)	Z(-25°C)/Z(+20°C)=6 Z(-40°C)/Z(+20°C)=15 (at 120Hz)
Endurance	The following specifications shall be satisfied when the capacitors are restored to 20°C after DC voltage plus the rated ripple current is applied for 2,000 hours at 105°C. Capacitance Change :≤±20% of the initial value D.F. (tanδ):≤200% of the initial specified value Leakage Current :≤The initial specified value
Leakage Current	I≤3 CV Where, I: Max.leakage current (μA), C: Nominal capacitance (μF),V:Rated voltage (V),(at 20 °C after 5 minutes)
Shelf Life	At +105˚C no voltage applied after 1,000 hours and then being stabilized at +20˚C the capacitors shall meet the following limits Leakage current : ≤Initial specified value Cap. change : within ±15% of the initial measured value tan δ : ≤150% of the initial specified value

Frequency correction factor for ripple current

Rated voltage(Vdc)/Freq.(Hz）	60	120	1k	10k-50k
16	0.90	1.00	1.15	1.25

How to order

XNS 103 M 1A D22L25 B

XNS:Series code

103:Capacitance code

M:Capacitance tolerance code

1A:Voltage code

D22L25:Size code

B:Packing number
