- 100uf 450v aluminum electrolytic capacitor
- Load life : 3000 hours at +105°c
- MOQ: 1000PCS
- Free Sample
- OEM/ODM services
100UF 450V Electrolytic Capacitor Aluminum factory sales
Description
100UF 450V Electrolytic Capacitor Aluminum
100UF 450V Electrolytic Capacitor Aluminum, its size is 18*36mm, its ripple current is 325mAmrs at 85℃ 120Hz. And its load life is 3000 hours at 105℃.
Standard radial aluminuim electrolytic capacitor is suitable for charger, adapter, air conditioning and rear projection TV.
We passed Rosh environmental certification, RECH certification and SGS quality management certification system.
Product Description:
The 100µF 450V Electrolytic Capacitor Aluminum is a high-quality electronic component designed for storing and releasing electrical energy in various electronic circuits. This capacitor offers reliable performance and is suitable for a wide range of applications, from power supplies to audio amplifiers.

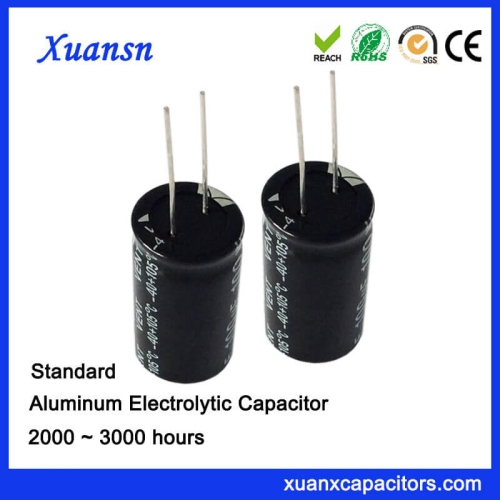

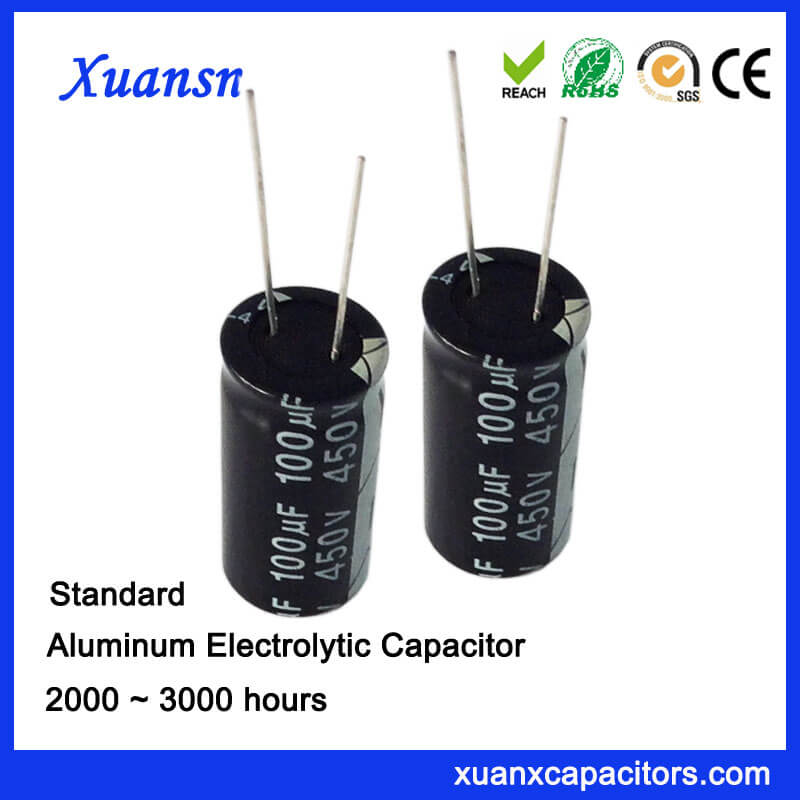

Product image
Technical Specifications:
- Capacitance: 100µF
- Voltage Rating: 450V
- Construction: Aluminum electrolytic
- Tolerance: ±20%
- Operating Temperature: -40°C to +105°C
- Ripple Current Rating: Check datasheet for detailed specifications
Specification of stahdard radial aluminum electrolytic capacitor
Dimensions(mm)
| ΦD | 5 | 6.3 | 8 | 10 | 13 | 16 | 18 |
|---|---|---|---|---|---|---|---|
| P | 2.0 | 2.5 | 3.5 | 5.0 | 5.0 | 7.5 | 7.5 |
| Φd | 0.5 | 0.5 | 0.5 | 0.6 | 0.6 | 0.8 | 0.8 |
| α | 1.0 | 2.0 | |||||
| β | 0.5 | ||||||
Frequency coefficient of rated ripple current
| Frequency(Hz) | 50 | 120 | 1k | 10k | 100k |
|---|---|---|---|---|---|
| 0.1 to 47 uf | 0.75 | 1 | 1.35 | 1.55 | 2 |
| 68 to 680 uf | 0.8 | 1 | 1.25 | 1.34 | 1.5 |
| 1000 to 15000 uf | 0.85 | 1 | 1.1 | 1.13 | 1.15 |
Temperature Coefficient
| Tem(℃) | +45 | +65 | +85 |
|---|---|---|---|
| Factor | 1.6 | 1.35 | 1.00 |
Standard Ratings(at 120Hz, 85°c)
Our certifications
Our advantage:
- We have a sound raw material cooperation system and cargo inspection mechanism.
- Products with high stability, high temperature, small size, small tolerance and so on.
- Product tolerances are strictly controlled between -15% to -10%.
- We have the world’s most advanced production equipment, and improve the management process.
- We can provide custom design of your needs and provide free sample for you.
- Our products comply with the RoHS Directive and the factory conforms to the ISO 9001 management system.
FAQ:
Q1. Can i have some samples for capacitors?
A: Yes, welcome sample to test and check quality,factory brand samples are free.
Q2. What about the lead time?
A: The sample needs 3-5days, the mass products needs 2 weeks for order quantity.
Q3. How do you ship the goods and how long does it take to arrive?
A: We usually ship by DHL,UPS,FEDEX or TNT, it usually takes 3-5 days to arrive.Airline and sea shipping also optional.
Q4. Is it OK to print my logo on capacitor?
A: Yes,pls inform us formally before our production and confirm the design firstly based on our sample
Q5. Do you offer guarantee for the products?
A: Yes,we offer 2-3years warranty to our products.
Q6. How to deal with the faulty?
A: If the item you purchase from factory beacuse of quality problems, you can return them to us for replacement or refund. And any items returned must be in their original condition to qualify for a refund or replacement.
If you have any interesting and problems, please contact us!
Email: [email protected]
Ph (whatsapp): +86-18825879082
Skype: Coco.PSH
Website: xuanxcapacitors.ru
