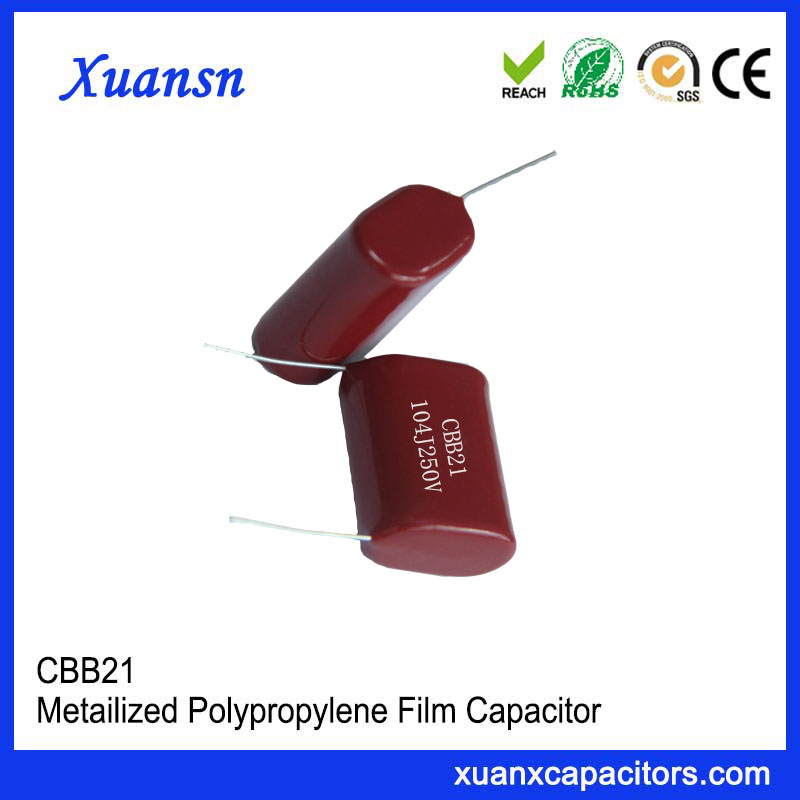

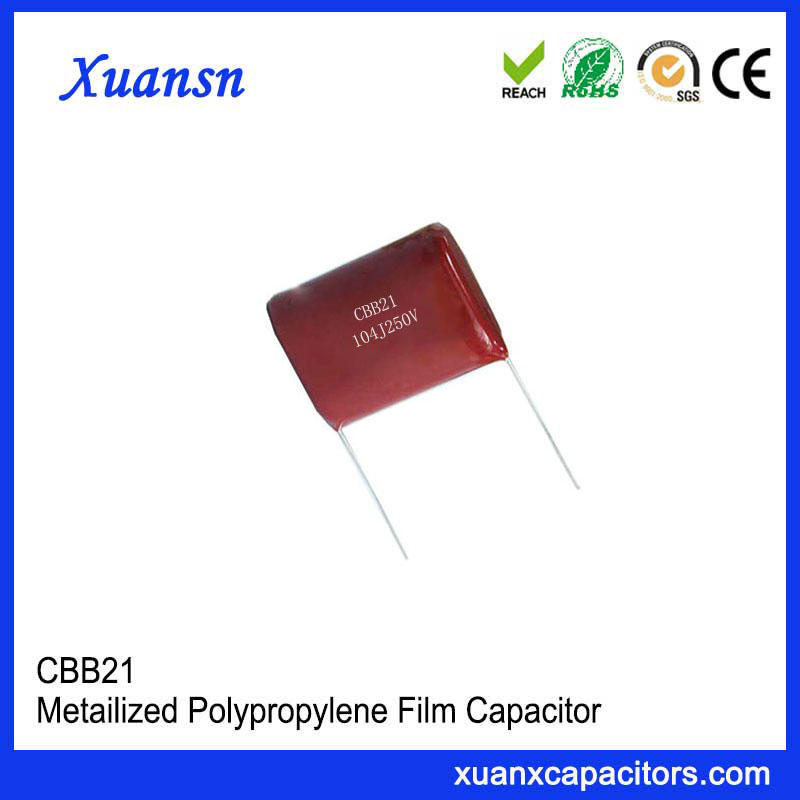

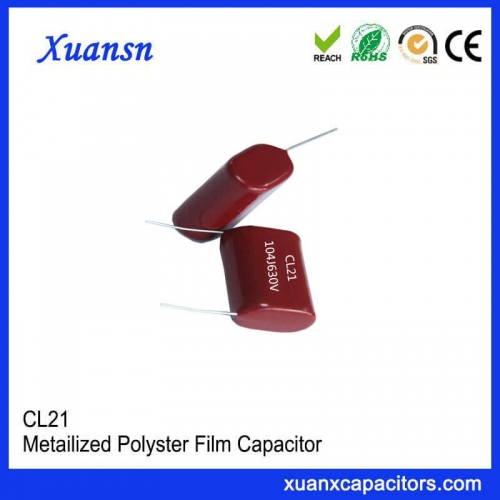

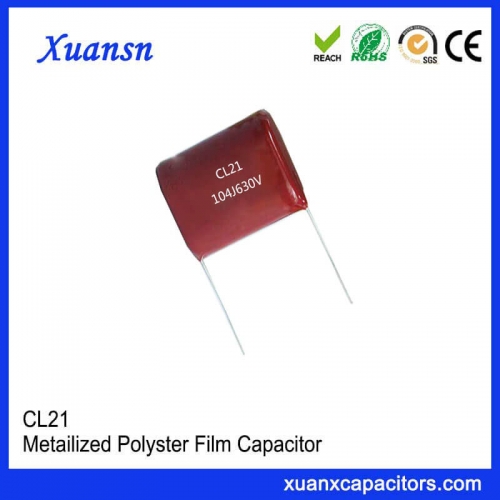

104J 250V film capacitor for electronic ballast

104J 250V film capacitor is replaced by metallized polypropylene film non-inductive structure. It is made of tinned copper clad steel wire, flame retardant epoxy resin powder package sealed or plastic shell, filled with flame retardant epoxy resin. It is main uses are in a wide range of high-frequency, DC, AC and pulse circuits. It is suitable for color TV S correction circuit that requires small size and excellent performance. Electronic equipment resonance, power factor compensation of emergency lights, supplement of switching power supply, timing, oscillation circuit.

104J 250V film capacitor Specifications

• Type: Metalized Polyester Film Capacitor
• Colour: Orange Red
• Capacitance: 100nF,0.1uF(104)
• Rated Voltage: 250V
• Capacitance Tolerance: ±5%(J),±10%(K)
• Lead Pitch(mm): 10.0mm
• Temperature Range: -25°C~85°C

Structure

A 104J 250V film capacitor usually has a layered structure consisting of two metalized films that are separated by a thin dielectric layer. The metalized films act as electrodes, and the dielectric layer between them serves as an insulator. The dielectric material used in the capacitor is usually polypropylene, polyester, or polycarbonate.

The capacitor is housed in a plastic casing, which provides mechanical protection and electrical insulation. The leads of the capacitor are typically made of tinned copper wire, which is attached to the electrodes through a metallization process.

The layered structure of the film capacitor provides several advantages, such as high insulation resistance, low equivalent series resistance (ESR), low equivalent series inductance (ESL), and high ripple current handling capacity. These characteristics make film capacitors ideal for high-frequency applications, power electronics, and audio equipment.

W:13.0mm
H:12.0mm
D:0.6mm
T:7.0mm

Features

• High insulation resistance
• High stability and reliability
• Low loss at high frequency
• High withstand voltage

Specific application cases

1. Decoupling in power supplies: The capacitor can be used for decoupling high frequency noise in power supplies by placing it in parallel with the power source.
2. Audio applications: The capacitor can be used in audio circuits to filter out unwanted noise or to help with frequency response.
3. Motor start and run capacitors: Film capacitors like the 104J250V can be used as start or run capacitors for single phase AC motors.
4. Lighting ballasts: The capacitor can be used in lighting ballasts to provide reactive power to the circuit.
5. Coupling and bypassing: The capacitor can be used for coupling and bypassing in various electronic circuits, such as amplifiers and filters.

FAQs

What is a 104J capacitor?

A 104J capacitor is a capacitor with a capacitance value of 0.1 µF and a tolerance of ±5%. The “J” in the part number represents the dielectric material, which is polypropylene film.

What is the difference between K and J capacitor?

The difference between K and J capacitors is the dielectric material used. K capacitors use polyester film as the dielectric material, while J capacitors use polypropylene film. Polypropylene film is generally considered to have better electrical properties than polyester film.

What is the value of 104 capacitor in uF?

The value of a 104 capacitor is 0.1 µF. The first two digits of the part number represent the significant figures of the capacitance value, while the third digit represents the number of zeros to add to the end of the value (in this case, 4 zeros or 0.1 µF).
