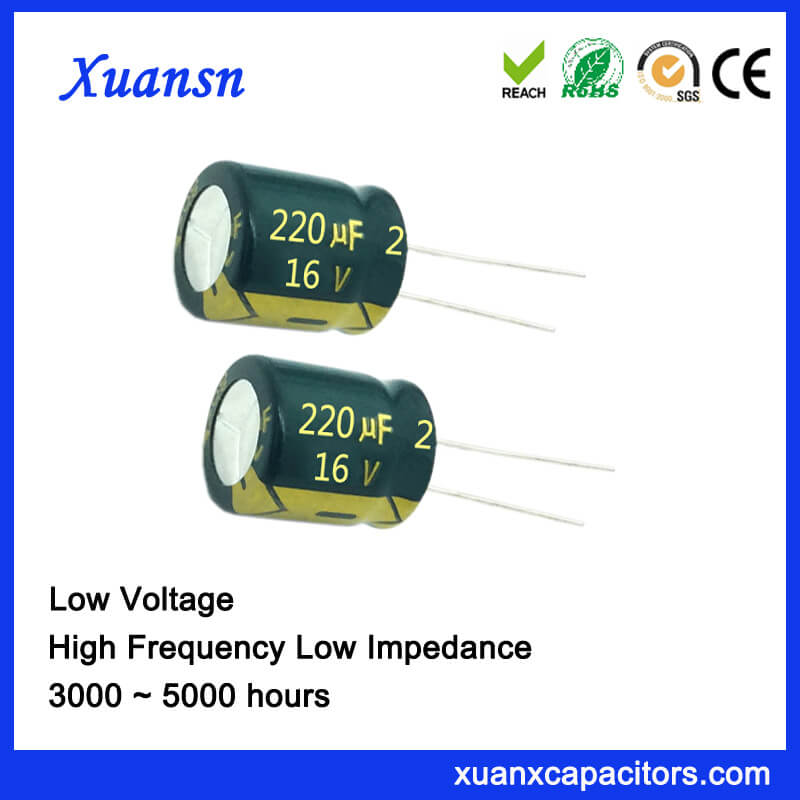

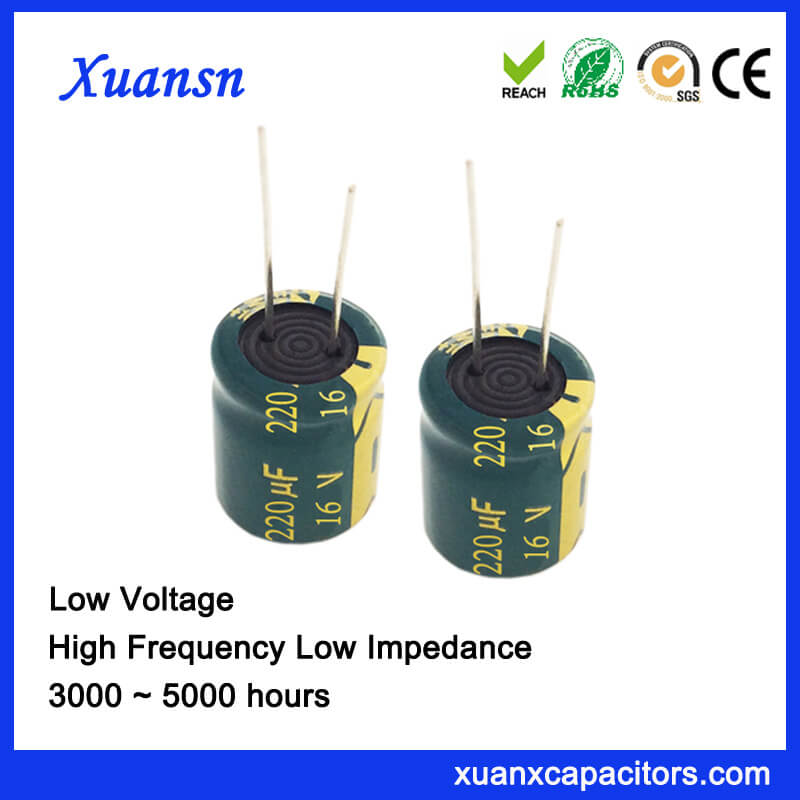

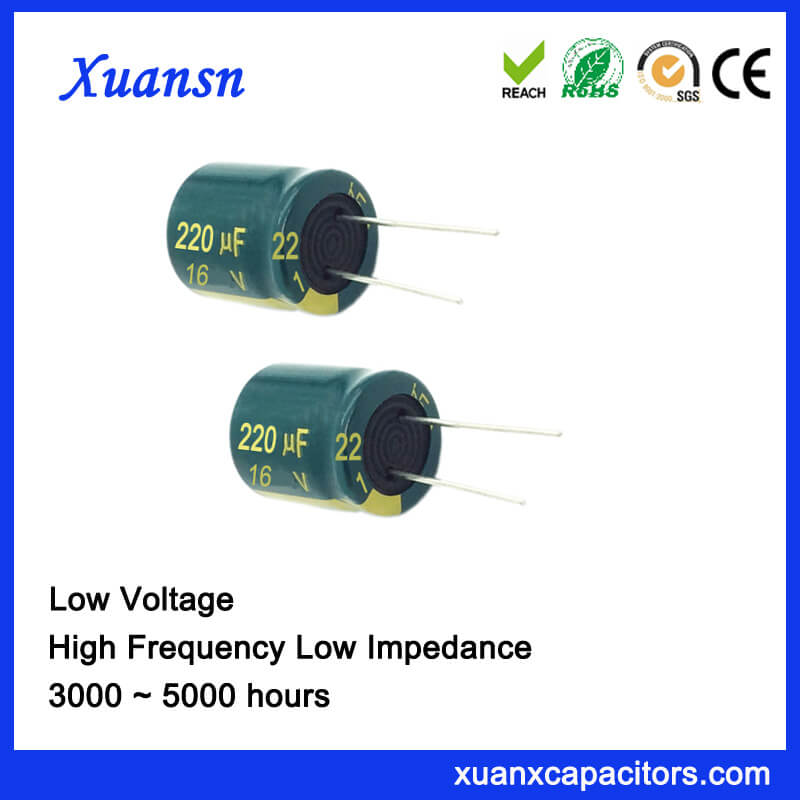

- 220uf 16v aluminum electrolytic capacitor
- Load life of 3000 to 5000 hours at +105°c
- Size:6.3*7,6.3*12
- MOQ: 1000PCS
- Free Sample
- OEM/ODM services
220uf 16V Capacitor High Frequency made in china
Description
220uf 16V Capacitor High Frequency made in china
220uf 16V Capacitor High Frequency is our low impedance electrolytic capacitor series. Its laod life is 3000 to 5000hours at 120Hz 105℃
220uf 16v High Frequency Electrolytic Capacitor, its size is 8*12mm, its impedance is 0.5Ω at 20℃ 100kHz, and its ripple current are 331mArms at 85℃ 120Hz and 496mAmrs at 85℃100kHz.
The low voltage high frequency capacitor is suitable for outdoor led power supply,m charger, adapter, speaker and digital products.
Specification of low voltage high frequency aluminum electrolytic capacitor
Dimensions(mm)
| ΦD | 5 | 6.3 | 8 | 10 | 13 | 16 | 18 |
|---|---|---|---|---|---|---|---|
| P | 2.0 | 2.5 | 3.5 | 5.0 | 5.0 | 7.5 | 7.5 |
| Φd | 0.5 | 0.5 | 0.5 | 0.6 | 0.6 | 0.8 | 0.8 |
| α | 1.0 | 2.0 | |||||
| β | 0.5 | ||||||
Frequency coefficient of rated ripple current
| Frequency(Hz) | 50 | 120 | 1k | 10k | 100k |
|---|---|---|---|---|---|
| 0.47 to 47 uf | 0.70 | 0.85 | 0.90 | 0.95 | 1.00 |
| 100 to 470 uf | 0.75 | 0.90 | 0.95 | 0.98 | 1.0 |
| 1000 to 10000 uf | 0.80 | 0.95 | 0.97 | 0.99 | 1.0 |
Temperature Coefficient
| Tem(℃) | +45 | +65 | +85 |
|---|---|---|---|
| Factor | 1.6 | 1.35 | 1.00 |
Standard Ratings(at 120Hz, 85°c)
Our certifications
Our advantage:
- We have a sound raw material cooperation system and cargo inspection mechanism.
- Products with high stability, high temperature, small size, small tolerance and so on.
- Product tolerances are strictly controlled between -15% to -10%.
- We have the world’s most advanced production equipment, and improve the management process.
- We can provide custom design of your needs and provide free sample for you.
- Our products comply with the RoHS Directive and the factory conforms to the ISO 9001 management system.
FAQ:
Q1. Can i have some samples for capacitors?
A: Yes, welcome sample to test and check quality,factory brand samples are free.
Q2. What about the lead time?
A: The sample needs 3-5days, the mass products needs 2 weeks for order quantity.
Q3. How do you ship the goods and how long does it take to arrive?
A: We usually ship by DHL,UPS,FEDEX or TNT, it usually takes 3-5 days to arrive.Airline and sea shipping also optional.
Q4. Is it OK to print my logo on capacitor?
A: Yes,pls inform us formally before our production and confirm the design firstly based on our sample
Q5. Do you offer guarantee for the products?
A: Yes,we offer 2-3years warranty to our products.
Q6. How to deal with the faulty?
A: If the item you purchase from factory beacuse of quality problems, you can return them to us for replacement or refund. And any items returned must be in their original condition to qualify for a refund or replacement.
If you have any interesting and problems, please feel free to contact us!
Email: [email protected]
Ph (whatsapp): +86-18825879082
Skype: Coco.PSH
