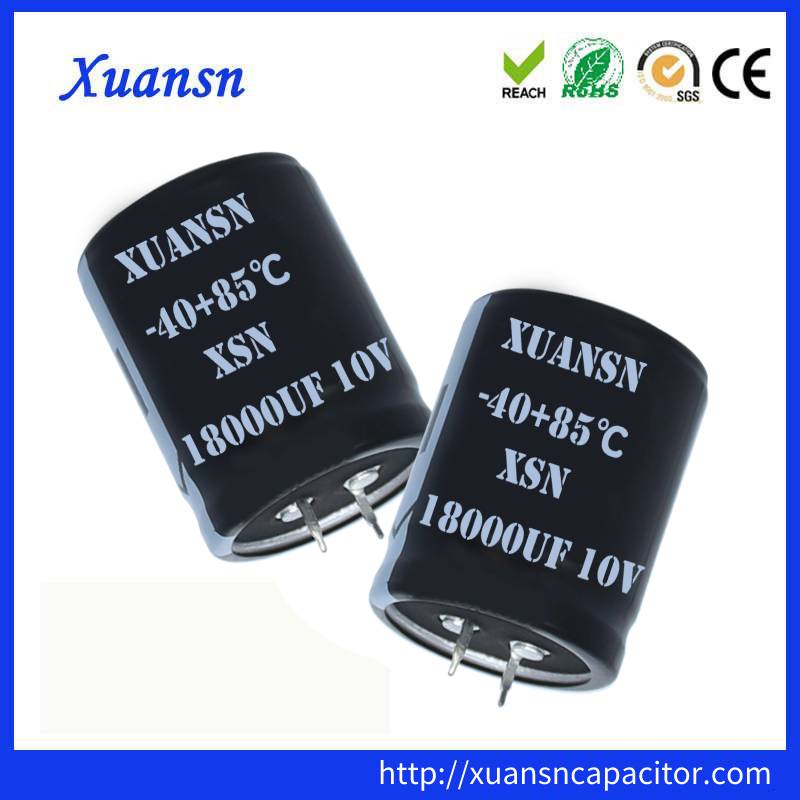

18000UF 10V Electrolytic Capacitor Snap In Capacitors

Description

Compared with other electrolytic capacitors, 18000UF 10V Electrolytic Capacitor has the characteristics of large capacity and high withstand voltage.

18000UF 10V Electrolytic Capacitor-Features

1.Reflow soldering is available
2.Available for high density surface mounting
3.High stability and reliability
4.Life time: 85˚C, 2,000Hrs

Parameters Table

Item	Characteristics
Temperature Range	-40-85℃
Specification	18000UF10V
Capacitance Tolerance	±20% (M) (at 20°C, 120Hz)
Dissipation Factor (tanδ)	tanδ (max.)=0.55 (at 20°C, 120Hz)
Rated ripple current (Arms/85°C, 120Hz)	3.22
Low Temperature Characteristics (Max. Impedance Ratio)	Z(-25°C)/Z(+20°C)=4 Z(-40°C)/Z(+20°C)=15 (at 120Hz)
Endurance	The following specifications shall be satisfied when the capacitors are restored to 20°C after DC voltage plus the rated ripple current is applied for 2,000 hours at 85°C. Capacitance Change :≤±20% of the initial value D.F. (tanδ):≤200% of the initial specified value Leakage Current :≤The initial specified value
Leakage Current	I≤3 CV Where, I: Max.leakage current (μA), C: Nominal capacitance (μF),V:Rated voltage (V),(at 20 °C after 5 minutes)
Shelf Life	The following specifications shall be satisfied when the capacitors are restored to 20°C after exposing them for 1,000 hours at 85°C without voltage applied. Capacitance Change:≤±20% of the initial value D.F. (tanδ):≤150% of the initial specified value Leakage Current:≤200% of the initial specified value

Frequency correction factor for ripple current

Rated voltage(Vdc)/Freq.(Hz）	120	1k	10k	100k
10	1.00	1.03	1.05	1.08

How to order

XNS 103 M 1A D22L25 B

XNS:Series code

103:Capacitance code

M:Capacitance tolerance code

1A:Voltage code

D22L25:Size code

B:Packing number

Our advantage

1. Have 18 years experiences in capacitor industry. Be able to quickly understand the needs of customers and give feedback quickly.

2. Covers all capacitors: Electrolytic capacitors, film capacitors, safety capacitors, ceramic capacitors, super capacitors.

3.With 200 production lines, the sample delivery time is 3 days, and the bulk goods delivery time is 2 weeks.

4.The company has its own R&D team and after-sales team, providing complete pre-sale, in-sale and after-sale services.
