- Type:Aluminum Electrolytic Capacitor
- Operating Temperature:-40℃-85℃
- Features:Large capacity
- Applications:welding machine,inverter,photovoltaic,color TV,computer,amplifier
- Manufacturer:XUANSN

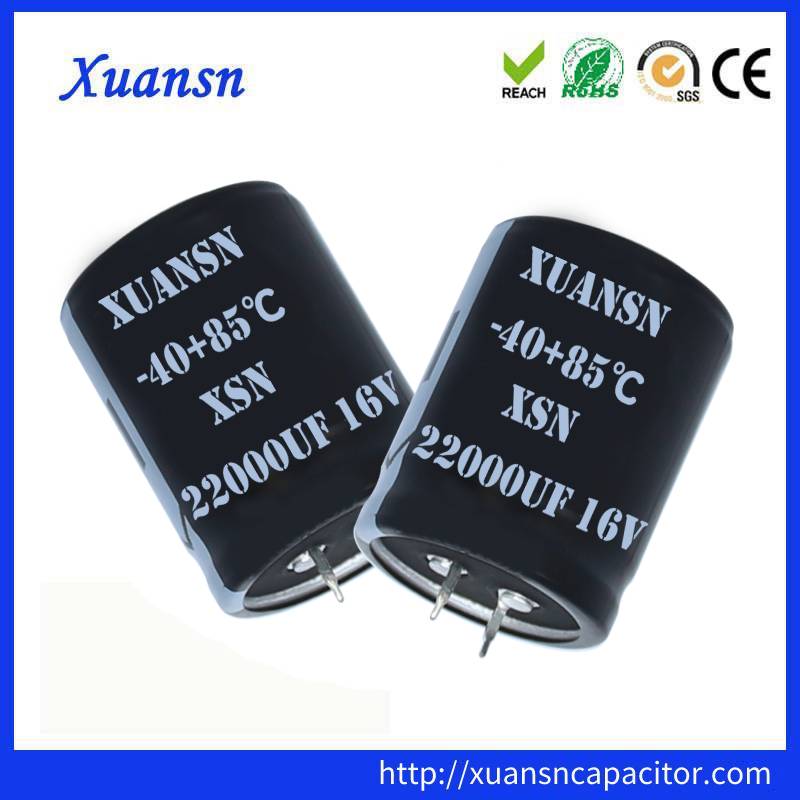

22000UF 16V capacitor Standard 85℃ 2000Hours Snap In Capacitors
Description
Compared with other electrolytic capacitors, 22000UF 16V capacitor has the characteristics of large capacity and high withstand voltage.
22000UF 16V Capacitor-Features
1.Reflow soldering is available
2.Available for high density surface mounting
3.High stability and reliability
4.Life time: 85˚C, 2,000Hrs
Parameters Table
| Item | Characteristics |
|---|---|
| Temperature Range | -40-85℃ |
| Specification | 22000UF16V |
| Capacitance Tolerance | ±20% (M) (at 20°C, 120Hz) |
| Dissipation Factor (tanδ) | tanδ (max.)=0.50 (at 20°C, 120Hz) |
| Rated ripple current (Arms/85°C, 120Hz) | 4.52 |
| Low Temperature Characteristics (Max. Impedance Ratio) | Z(-25°C)/Z(+20°C)=4 Z(-40°C)/Z(+20°C)=15 (at 120Hz) |
| Endurance | The following specifications shall be satisfied when the capacitors are restored to 20°C after DC voltage plus the rated ripple current is applied for 2,000 hours at 85°C. Capacitance Change :≤±20% of the initial value D.F. (tanδ):≤200% of the initial specified value Leakage Current :≤The initial specified value |
| Leakage Current | I≤3 CV Where, I: Max.leakage current (μA), C: Nominal capacitance (μF),V:Rated voltage (V),(at 20 °C after 5 minutes) |
| Shelf Life | The following specifications shall be satisfied when the capacitors are restored to 20°C after exposing them for 1,000 hours at 85°C without voltage applied. Capacitance Change:≤±20% of the initial value D.F. (tanδ):≤150% of the initial specified value Leakage Current:≤200% of the initial specified value |
Frequency correction factor for ripple current
| Rated voltage(Vdc)/Freq.(Hz） | 120 | 1k | 10k | 100k |
|---|---|---|---|---|
| 16 | 1.00 | 1.03 | 1.05 | 1.08 |
How to order
XNS 103 M 1A D22L25 B
XNS:Series code
103:Capacitance code
M:Capacitance tolerance code
1A:Voltage code
D22L25:Size code
B:Packing number
