- 220uf 6.3v 125℃ chip capacitor
- MOQ: 1000pcs
- Price: 0.1 to 1 usd/pcs
- Offer free sample
- Provide ODM/OEM services

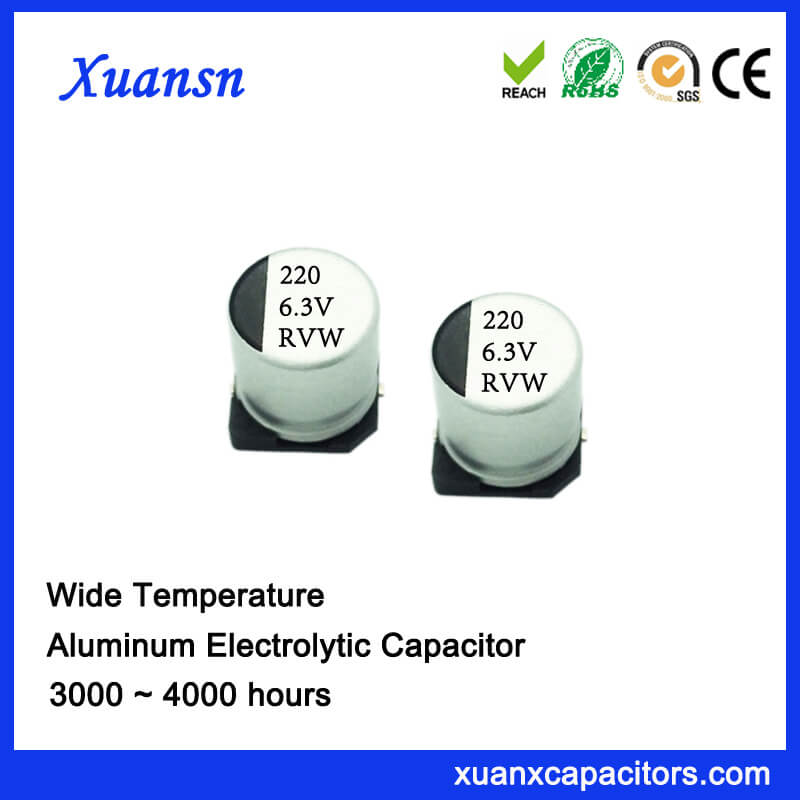

220UF 6.3V 3000Hours 105℃ SMD Aluminum Electrolytic Capacitor
Description
220UF 6.3V 3000Hours 105℃ SMD Aluminum Electrolytic Capacitor
Xuansn factory manufacturering and supply of 3000 to 4000 hours 105℃ 220UF 6.3V 3000Hours 105℃ SMD Aluminum Electrolytic Capacitor.
- Opearing temperature : -55℃ ~ +105℃
- Capacitance tolerance : 20%
- Size : 6.3*7.7mm
- Ripple current: 105mAmrs
- Life: 3000 to 4000 hours
The 105℃ chip aluminum electrolytic Capacitor has high stability and reliability, it is available for high density surface mounting and reflow soldering.

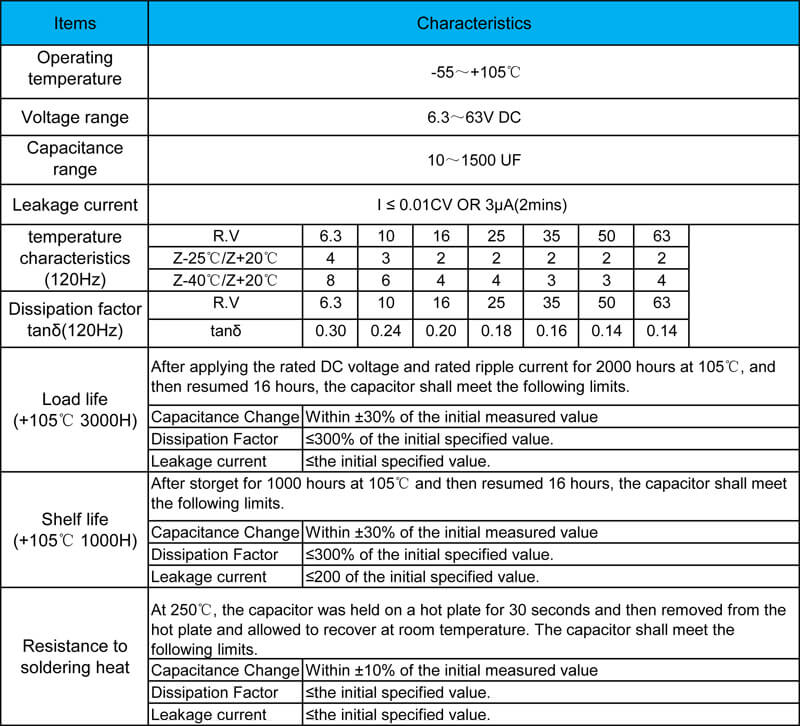

Specification of 105℃ chip aluminum electrolytic Capacitor

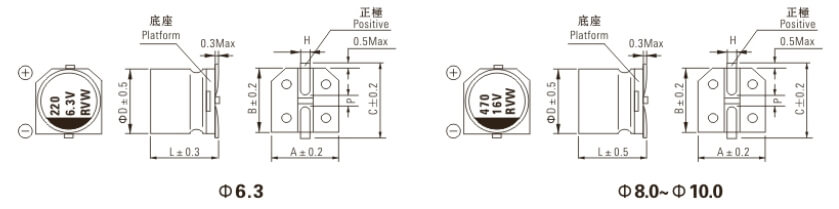

Dimensions and Marking(mm)
| ΦD | A | B | C | P | L | H |
|---|---|---|---|---|---|---|
| 6.3 | 6.6 | 6.6 | 7.2 | 2.1 | 7.7 | 0.5~0.8 |
| 8.0 | 8.3 | 8.3 | 9.1 | 3.1 | 10.2 | 0.8~1.1 |
| 10.0 | 10.3 | 10.3 | 11.1 | 4.5 | 10.2 | 0.8~1.1 |

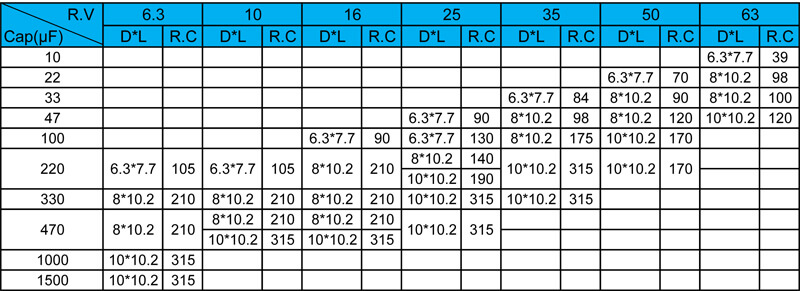

Nominal Capacitance, Rated Voltage, Rated Ripple Current and Case Size Table
R.C（Rated Ripple Current）: 105℃, 120Hz, mAmrs。
Frequency Coefficient of Rated Ripple Current
| Frequency | 50Hz | 120Hz | 300Hz | 1Khz | ≥10Hz |
|---|---|---|---|---|---|
| Coefficient | 0.70 | 1.00 | 1.15 | 1.30 | 1.40 |
Our certifications
Our advantage:
- We have a sound raw material cooperation system and cargo inspection mechanism.
- Products with high stability, high temperature, small size, small tolerance and so on.
- Product tolerances are strictly controlled between -15% to -10%.
- We have the world’s most advanced production equipment, and improve the management process.
- We can provide custom design of your needs and provide free sample for you.
- Our products comply with the RoHS Directive and the factory conforms to the ISO 9001 management system.
FAQ:
Q1. Can i have some samples for capacitors?
A: Yes, welcome sample to test and check quality,factory brand samples are free.
Q2. What about the lead time?
A: The sample needs 3-5days, the mass products needs 2 weeks for order quantity.
Q3. How do you ship the goods and how long does it take to arrive?
A: We usually ship by DHL,UPS,FEDEX or TNT, it usually takes 3-5 days to arrive.Airline and sea shipping also optional.
Q4. Is it OK to print my logo on capacitor?
A: Yes,pls inform us formally before our production and confirm the design firstly based on our sample
Q5. Do you offer guarantee for the products?
A: Yes,we offer 2-3years warranty to our products.
Q6. How to deal with the faulty?
A: If the item you purchase from factory beacuse of quality problems, you can return them to us for replacement or refund. And any items returned must be in their original condition to qualify for a refund or replacement.
