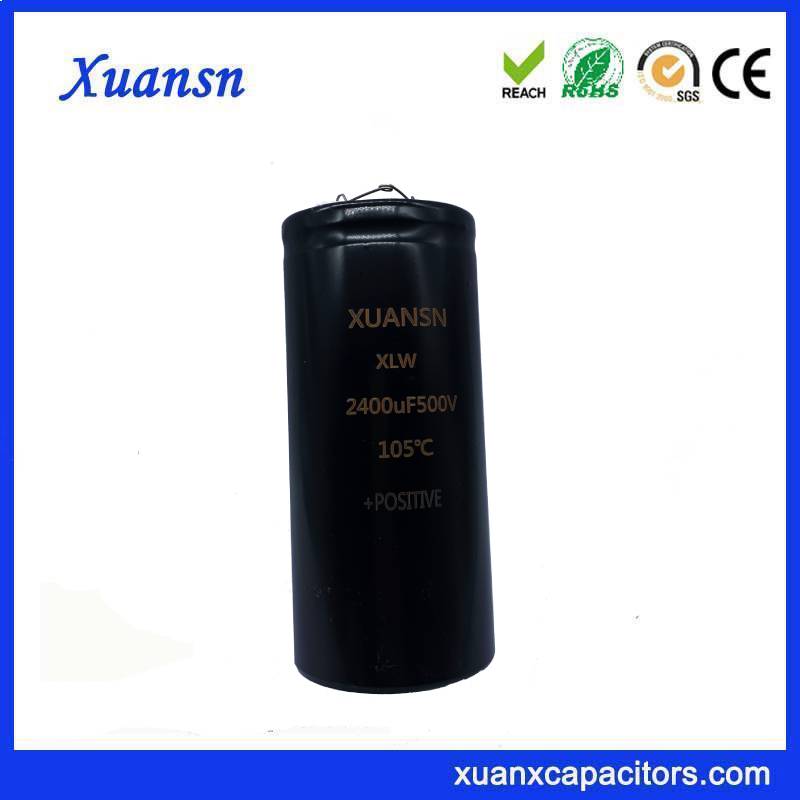

2400uf 500v capacitor high voltage capacitors screw terminal

2400uf 500v capacitor high voltage capacitors screw terminal

  • Type:Aluminum Electrolytic Capacitor
  • Operating Temperature:-40℃-105℃
  • Life:5000hours
  • Applications:automotive electronic systems, power electronic systems, communication systemsetc,etc.
  • Manufacturer:XUANSN

Description

2400uf 500v capacitor is a new type of electrolytic capacitor, which uses bolts to control the connection method of the capacitor. It can be used to replace traditional welding or plugging electrolytic capacitors, and has the advantages of simple installation, safety and reliability, small size, high withstand voltage, and strong temperature resistance.

2400UF 500V Capacitor-Features

1.Highly reliable capacitors that withstand under high ripple current.
2.Two or three dimensions with same ratings.
3.Aluminum case designed explosion-proof vent.
4.Applications: automotive electronic systems, power electronic systems, communication systems, household appliances, power systems, consumer electronics, lighting systems, television systems, monitoring systems, computer systems.

2400UF 500V CAPACITOR-Parameters Table

 Item Characteristics
Temperature Range -40-105℃
Specification 2400UF500V
Capacitance Tolerance ±20% (M)                                                    (at 20°C, 120Hz)
Dissipation Factor (tanδ) tanδ (max.)=0.20                                    (at 20°C, 120Hz)
Rated ripple current (Arms/105°C, 120Hz) 18.8
Low Temperature Characteristics (Max. Impedance Ratio) Z(-25°C)/Z(+20°C)=8
Z(-40°C)/Z(+20°C)=/                            (at 120Hz)
Endurance The following specifications shall be satisfied when the capacitors are restored to 20°C after DC voltage plus the rated ripple current is applied for 5,000 hours at 105°C.
Capacitance Change :≤±20% of the initial value
D.F. (tanδ):≤200% of the initial specified value
Leakage Current :≤The initial specified value
Leakage Current I ≤0.02CV (μA) or 5 (mA)

whichever is smaller measured after 5 minutes application of rated working voltage at +20˚C

Shelf Life At +105˚C no voltage applied after 1,000 hours and then being stabilized at +20˚C the capacitors shall meet the following limits
Leakage current : ≤Initial specified value
Cap. change : within ±20% of the initial measured value
tan δ : ≤200% of the initial specified value

Frequency correction factor for ripple current

Rated voltage(Vdc)/Freq.(Hz) 50 120 1k 10k-
500 0.80 1.00 1.15 1.20

How to order

XNS       103       M     1A     D22L25           B

XNS:Series code

103:Capacitance code

M:Capacitance tolerance code

1A:Voltage code

D22L25:Size code

B:Packing number
