Description

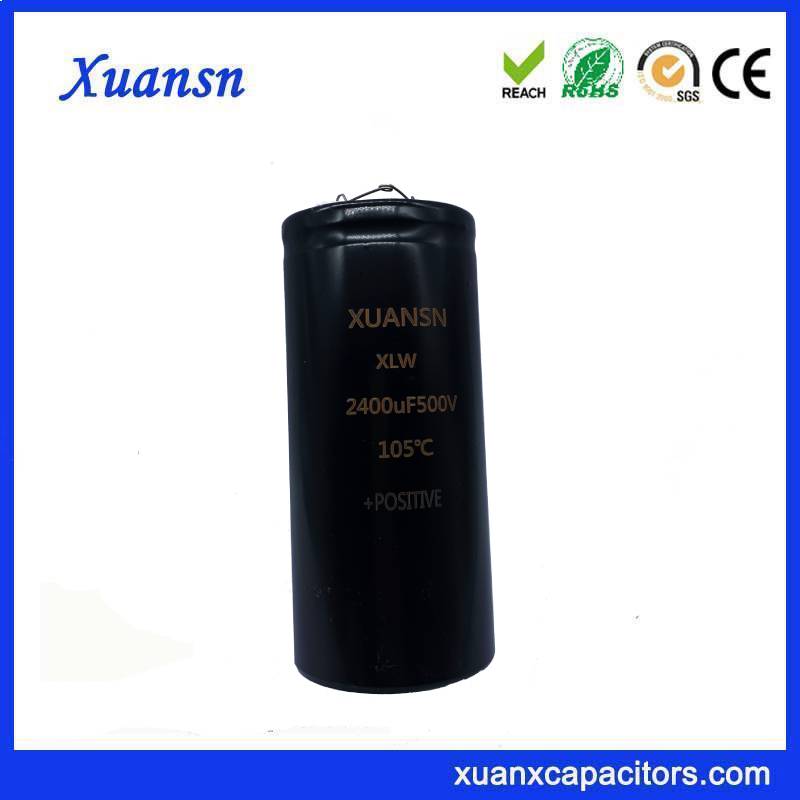

Product introduction:2400uf 500v electrolytic capacitor

2400uf 500V electrolytic capacitor is a screw terminal capacitor,also known as a screw terminal electrolytic capacitor, is a type of electrolytic capacitor that features screw terminals for electrical connections. Unlike traditional radial or axial lead electrolytic capacitors that use soldered or crimped leads, screw terminal capacitors have threaded metal terminals that can be securely fastened using screws or nuts.

The main purpose of screw terminal capacitors is to provide a reliable and robust electrical connection in applications that require higher current or voltage ratings. The screw terminals offer a convenient and secure method of attaching the capacitor to a circuit or a larger system.

Screw terminal capacitors are commonly used in industrial applications where high capacitance values and voltage ratings are required, such as power supplies, motor drives, inverters, and other high-power electronic systems. They are also used in equipment where frequent capacitor replacements may be necessary, as the screw terminals make it easier to install and remove the capacitors without the need for soldering or desoldering.

It has excellent high frequency, long life, high reliability, high ripple current characteristics, and the size can be changed. Applications: suitable for industrial-grade inverters, servo control, switching power supplies, PC power supplies, and industrial power supplies. And there are super excellent high frequency, super long life, high ripple current, high reliability characteristics.

2400UF 500V Electrolytic Capacitor-Features

1.Highly reliable capacitors that withstand under high ripple current.
2.Two or three dimensions with same ratings.
3.Aluminum case designed explosion-proof vent.
4.Best for switching power supplies.

Applications of 2400UF 500V Electrolytic Capacitor:

Power electronics: Screw terminal capacitors find extensive use in power electronic systems, including power supplies, motor drives, inverters, and converters. They provide energy storage, voltage regulation, and smoothing functions in these high-power applications.
Industrial equipment: Screw terminal capacitors are employed in various industrial equipment, such as automation systems, control panels, motor control centers, and machinery. They contribute to stable operation and power conditioning in these demanding environments.
Renewable energy systems: Screw terminal capacitors are utilized in renewable energy systems, including solar power inverters and wind turbine converters, to ensure efficient power conversion, voltage stabilization, and energy storage.
Power distribution: These capacitors are used in electrical distribution systems and substations to improve power factor correction, reduce reactive power, and enhance overall power system efficiency.
Large-scale installations: Screw terminal capacitors are suitable for large-scale installations and infrastructure projects, such as data centers, telecommunications facilities, and industrial complexes, where robust and reliable power capacitors are required.

Parameters Table

Item	Characteristics
Temperature Range	-40-105℃
Specification	2400UF500V
Capacitance Tolerance	±20% (M) (at 20°C, 120Hz)
Dissipation Factor (tanδ)	tanδ (max.)=0.20 (at 20°C, 120Hz)
Rated ripple current (Arms/105°C, 120Hz)	18.8
Low Temperature Characteristics (Max. Impedance Ratio)	Z(-25°C)/Z(+20°C)=8 Z(-40°C)/Z(+20°C)=/ (at 120Hz)
Endurance	The following specifications shall be satisfied when the capacitors are restored to 20°C after DC voltage plus the rated ripple current is applied for 5,000 hours at 105°C. Capacitance Change :≤±20% of the initial value D.F. (tanδ):≤200% of the initial specified value Leakage Current :≤The initial specified value
Leakage Current	I ≤0.02CV (μA) or 5 (mA) whichever is smaller measured after 5 minutes application of rated working voltage at +20˚C
Shelf Life	At +105˚C no voltage applied after 1,000 hours and then being stabilized at +20˚C the capacitors shall meet the following limits Leakage current : ≤Initial specified value Cap. change : within ±20% of the initial measured value tan δ : ≤200% of the initial specified value

Frequency correction factor for ripple current

Rated voltage(Vdc)/Freq.(Hz）	50	120	1k	10k-
500	0.80	1.00	1.15	1.20

How to order

XNS 103 M 1A D22L25 B

XNS:Series code

103:Capacitance code

M:Capacitance tolerance code

1A:Voltage code

D22L25:Size code

B:Packing number

Our advantage

1. Have 18 years experiences in capacitor industry. Be able to quickly understand the needs of customers and give feedback quickly.

2. Covers all capacitors: Electrolytic capacitors, film capacitors, safety capacitors, ceramic capacitors, super capacitors.

3.With 200 production lines, the sample delivery time is 3 days, and the bulk goods delivery time is 2 weeks.

4.The company has its own R&D team and after-sales team, providing complete pre-sale, in-sale and after-sale services.

Contact us

We are a supplier of electrolytic capacitor, and we have rich experiences in this field. Our daily production capacity can reach 7 million electrolytic capacitors, the sample period is 3 days, and the production cycle is 10 days. We will give you great support in terms of price, quality and delivery time.

And Support Customer’s Visit To The Factory
