332M400V safety capacitor datasheet,ac capacitor,Y1 capacitor

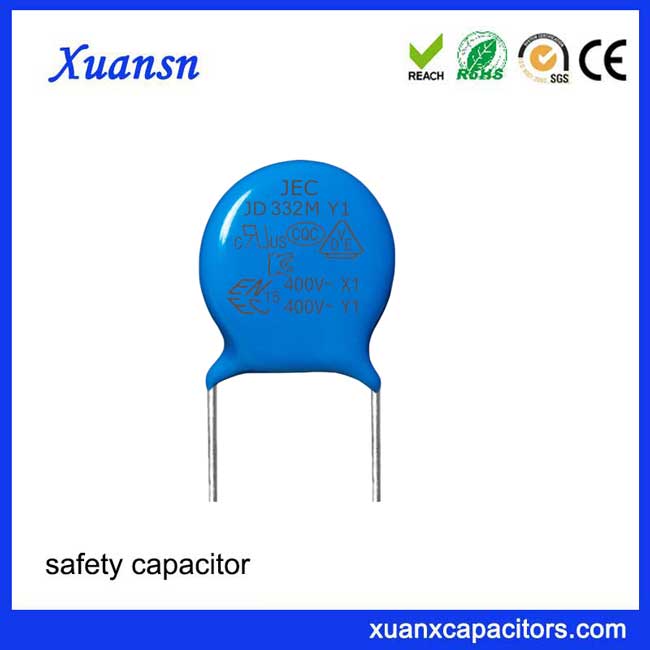

332M400V safety capacitor datasheet

Type: safety capacitor
Capacitance: 3300pF(332)
Rated Voltage(AC): 400VAC
Tolerance:±20%（M）
Withstand voltage(AC)：4000VAC
Color: Blue
Special Service: Cut Feet, Bend Feet
Warranty: Unconditional replenishment

Description

332M400V safety capacitor datasheet Features And Applications

332M400V safety capacitor datasheet,when the capacitor fails, will not cause electric shock, and does not endanger personal safety. Ceramic dielectric with high dielectric constant and flame retardant epoxy resin package for suppression of power supply electromagnetic interference, filtering, antenna coupling, jumper and bypass circuits. Used for common mode filtering, generally used at the input.

332M400V safety capacitor Parameter

Type : safety capacitor
Colour：Blue
Capacitance:3300pF(332)
Rated Voltage(AC):400VAC
Withstand voltage(AC)：4000VAC
Tolerance:±20%（M）
Material Properties：Y5U,Y5V
Temperature range: -25 to 85°C
Tanδ：0.025~0.05
D:13/11mm
F:9.5mm
T:6.0mm
Rated Freq(HZ): 1KHZ
Certification：UL,SEMKO,SEV,FIMKO,NEMKO,DEMKO,VDE.CQC.KC

332M400V safety capacitor datasheet
