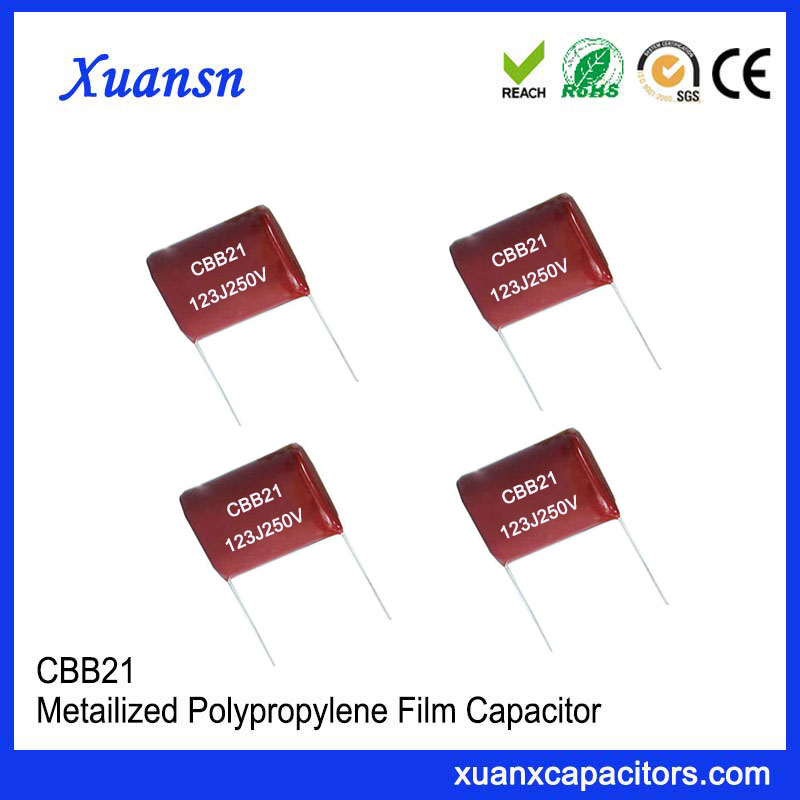

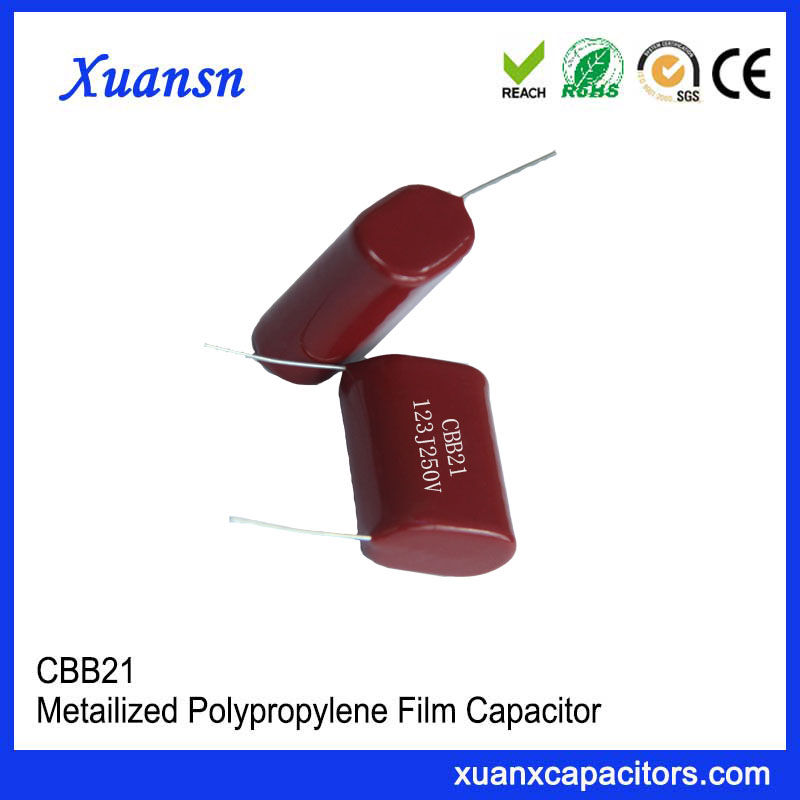

CBB 123J 250V film capacitor factory for sale

CBB 123J 250V film capacitor for flashlight

Types : CBB21 Polypropylene Capacitor
Model：123J 250V FILM CAPACITOR
P=10.0mm
Capacitace Tolerance: ±5%(J)
Size(W*H*T*D): 13.0*10.0*4.5*0.6mm

Description

CBB 123J 250V film capacitor for flashlight

CBB 123J 250V film capacitor is replaced by metallized polypropylene film non-inductive structure. It is made of tinned copper clad steel wire, flame retardant epoxy resin powder package sealed or plastic shell, filled with flame retardant epoxy resin. Its main uses are in a wide range of high-frequency, DC, AC and pulse circuits. It is suitable for color TV S correction circuit that requires small size and excellent performance. Electronic equipment resonance, power factor compensation of emergency lights, supplement of switching power supply, timing, oscillation circuit.

CBB 123J 250V film capacitor for flashlight

Type : metalized polyester film capacitor
Colour：Orange red
Capacitance:0.012uf （123)
Rated Voltage:250V
Capacitance Tolerance: ±5%(J),±10%(K)
Lead Pitch(mm):10.0mm
Temperature Range: -25 To 85°C
W:13.0mm
H:10.0mm
D:0.6mm
T:4.5mm
