- 10uf 400v PET Anti-Lightning electrolytic Capacitor
- Load life of 2000 to 3000 hours at +105°c
- Size:8*16,10*13 and 10*16mm
- MOQ: 1000PCS
- Free Sample
Anti-Lightning PET 400v Electrolytic Capacitor
Description
Anti-Lightning PET 400v Electrolytic Capacitor, it can resist the 6KV lightning. Its size has 8*16,10*13 and 10*16mm, and its load life is 2000 to 3000 hours at 105℃. Its materials are electrolytic paper, electrolytic solution, aluminum foil and insulating sleeve that meet environmental requirements.
High voltage anti-lightning aluminum electrolytic capacitor is suitable for outdoor power supply and waterproof socket. We passed Rosh environmental certification, RECH certification and SGS quality management certification system.
We can custom design and manufacturer products of your requirement, such as logol, material, and some Specifications that your needs.

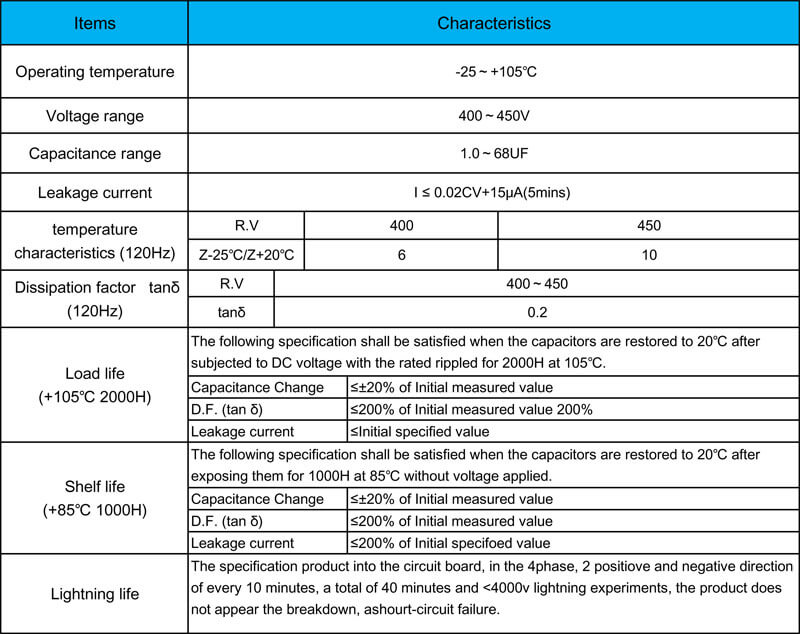

Specification of Anti-Lightning PET 400v Electrolytic Capacitor
Dimensions(mm)
| ΦD | 6.3 | 8 | 10 | 13 | 16 | 18 |
|---|---|---|---|---|---|---|
| P | 2.5 | 3.5 | 5.0 | 5.0 | 7.5 | 7.5 |
| Φd | 0.5 | 0.5 | 0.6 | 0.6 | 0.8 | 0.8 |
| α | 1.0 | 2.0 | ||||
| β | 0.5 | |||||
Frequency coefficient of rated ripple current
| Frequency(Hz) | 50 | 120 | 300 | 1k | 10k |
|---|---|---|---|---|---|
| 1 to 47 uf | 0.75 | 1 | 1.35 | 1.55 | 2 |
| 68 uf | 0.8 | 1 | 1.25 | 1.34 | 1.5 |
Temperature Coefficient
| Tem(℃) | +45 | +65 | +85 | +105 |
|---|---|---|---|---|
| Factor | 1.6 | 1.35 | 1.1 | 1.0 |

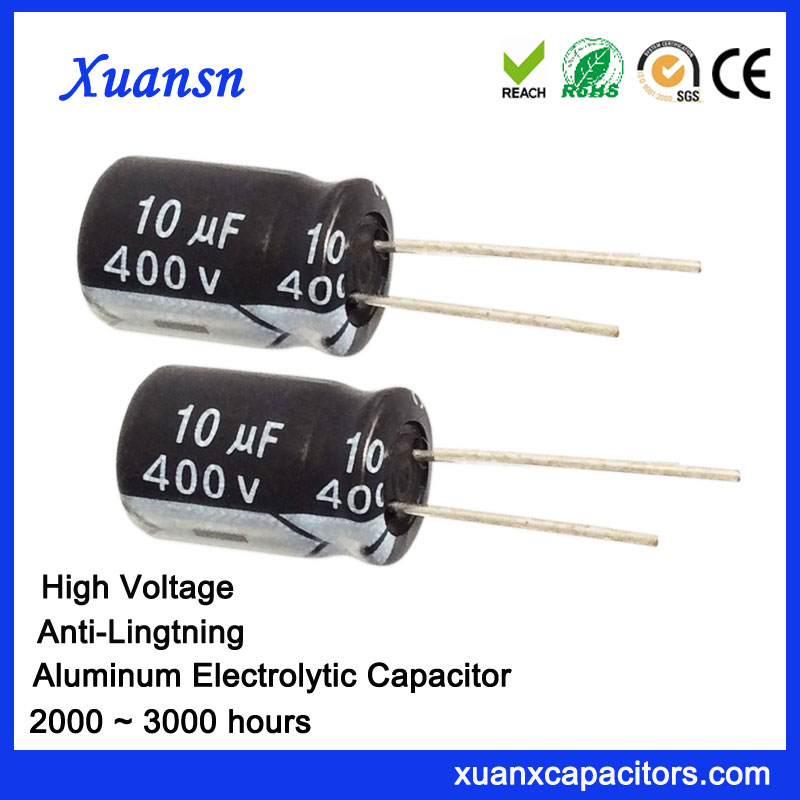

10uf 400v Aluminum Electrolytic Radial Capacitor images:

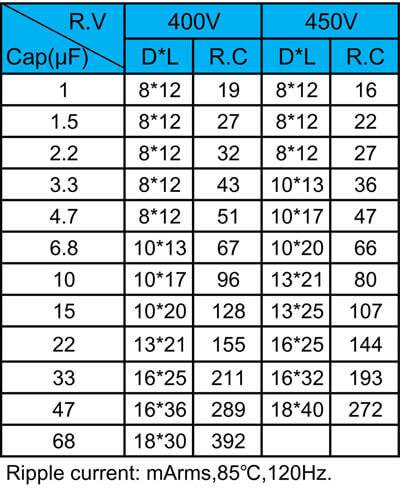

Standard Ratings(at 120Hz, 85°c)
Our advantages:
- We have perfect raw material cooperation system and cargo inspection mechanism.
- Our products have stability, anti-high temperature, small size and small error.
- We have advanced production equipments and refine management process.
- We provide custom design for you needs and also offer free sample to you.
- Our products compliant to the RoHS directive and have Samxon quality.
- We provide after-sale support.
If you have any interesting and problems, please feel free to contact us!
Email: [email protected]
Ph (whatsapp): +86-18825879082
Skype: Coco.PSH
Website: xuanxcapacitors.ru
