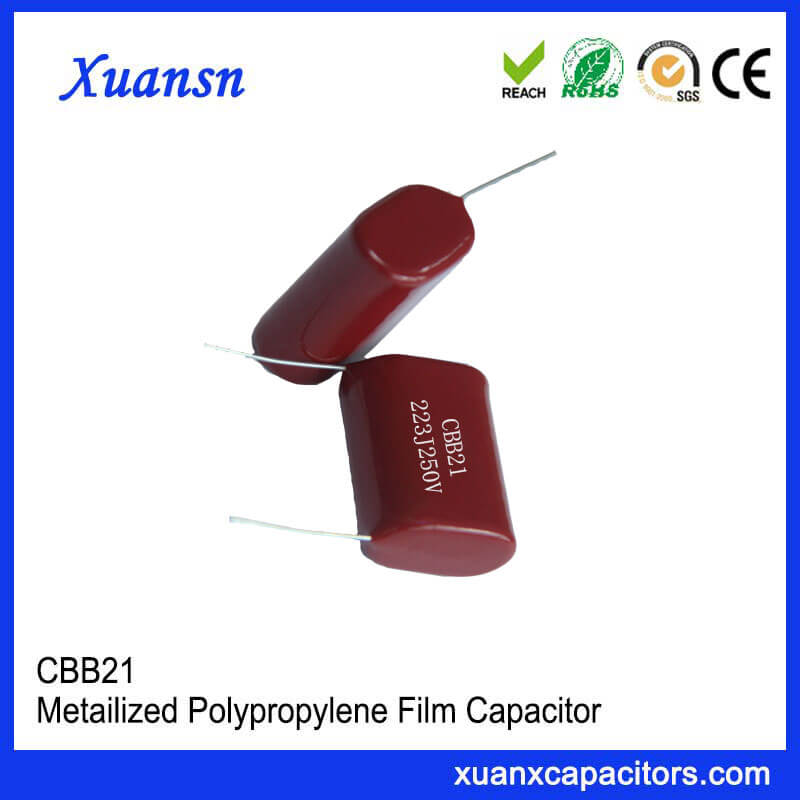

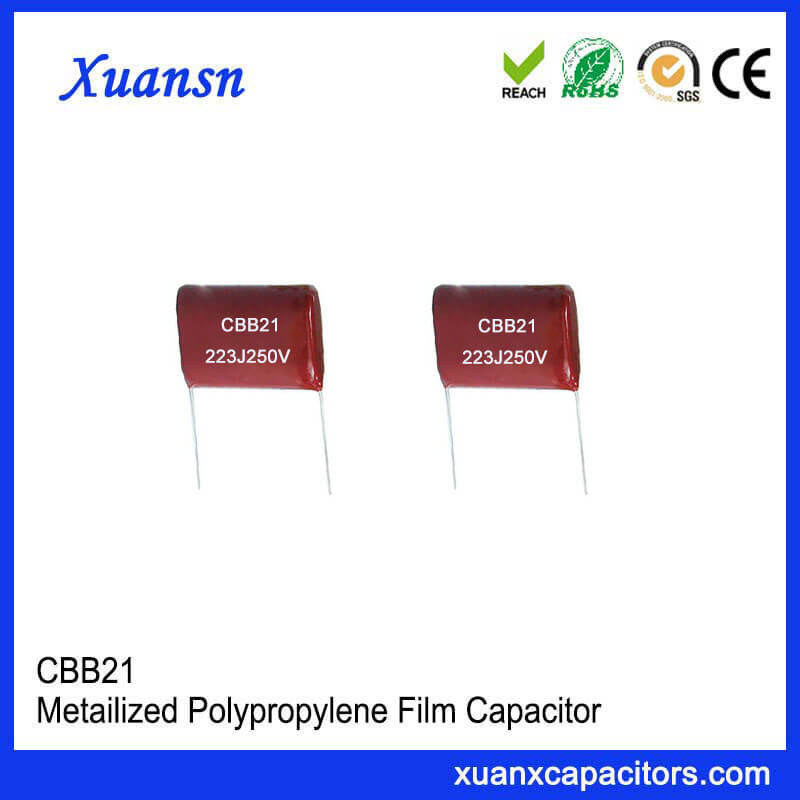

CBB21 223J 250V film capacitor factory

CBB21 Polyester Film Capacitor
223J 250V Film Capacitor
Package: Bulk and Tape
Size(T*H*W):5*10*13mm
Can withstand 200 times of destructive charge and discharge

Description

CBB21 223J 250V film capacitor for electronic device resonance

CBB21 223J 250V film capacitor is stability and reliability, non-inductive structure minimizes loss factors, excellent environmental performance, low ESR,metal film capacitors are non-inductive. They are made of polyester film as the medium and aluminum foil as the electrode. Tinned copper clad steel wire, with epoxy resin encapsulation, good heat resistance, rated working temperature of 70 ℃, the highest the working temperature can reach 155 ℃, the voltage stability is good, the temperature coefficient is small, and the application is very wide, suitable for AC, DC and pulse circuits.

CBB21 capacitor 223J 250V

Type : metalized polyester film capacitor
Colour：Orange red
Capacitance:0.022uf （223)
Rated Voltage:250V
Capacitance Tolerance: ±5%(J),±10%(K)
Lead Pitch(mm):10.0mm
Temperature Range: -25 To 85°C
W: 13.0mm
H: 10mm
T: 5mm
P±1： 10.0mm
