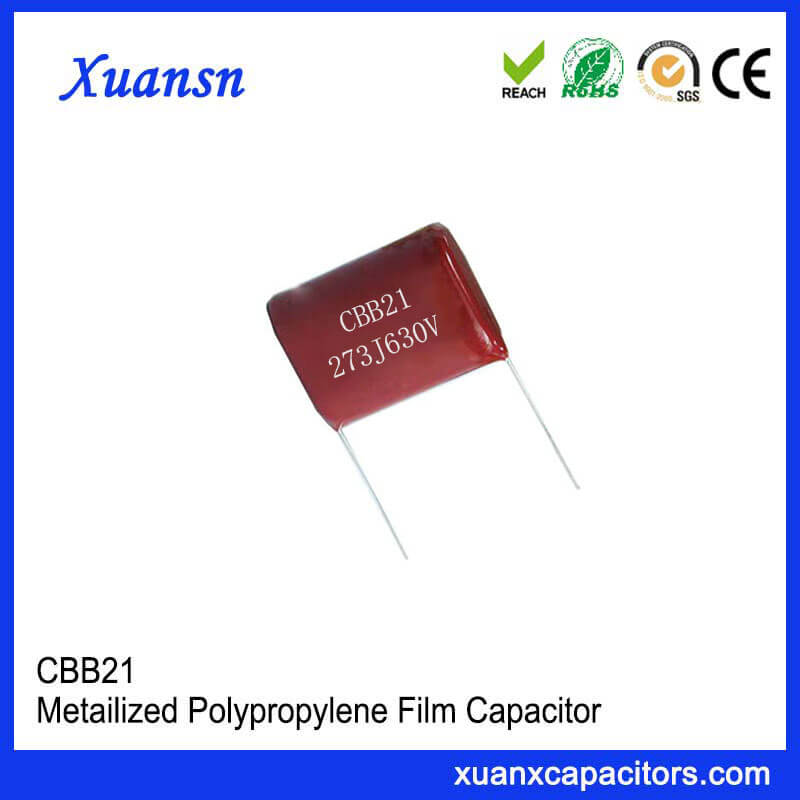

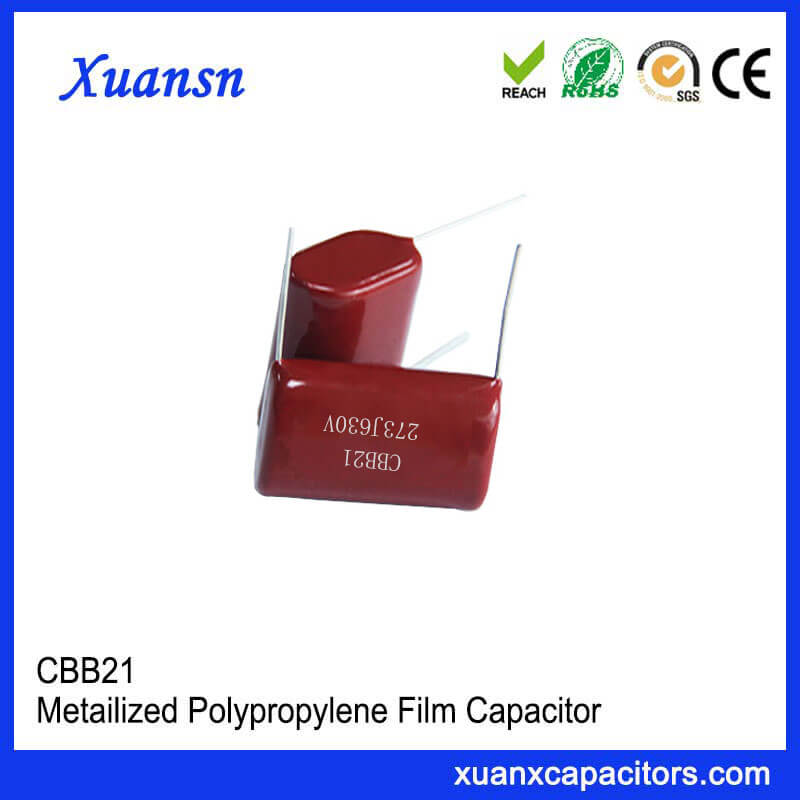

CBB21 metal film capacitor 273J 630V Chinese manufacturer

CBB21 Polyester Film Capacitor
273J 630V Film Capacitor
Package: Bulk and Tape
Size(T*H*W):5*10.5*13mm
Can withstand 200 times of destructive charge and discharge

Description

CBB21 metal film capacitor 273J 630V energy-saving lamp dedicated

CBB21 metal film capacitor is replaced by metallized polypropylene film non-inductive structure. It is made of tinned copper clad steel wire, flame retardant epoxy resin powder package sealed or plastic shell, filled with flame retardant epoxy resin. Its main uses are in a wide range of high-frequency, DC, AC and pulse circuits. It is suitable for color TV S correction circuit that requires small size and excellent performance. Electronic equipment resonance, power factor compensation of emergency lights, supplement of switching power supply, timing, oscillation circuit.

CBB21 capacitor 273J 630V

Type : metalized polyester film capacitor
Colour：Orange red
Capacitance:0.027uf （273)
Rated Voltage:630V
Capacitance Tolerance: ±5%(J),±10%(K)
Lead Pitch(mm):10.0mm
Temperature Range: -25 To 85°C
W:13.0mm
H:10.5mm
D:0.6mm
T:5.0mm
