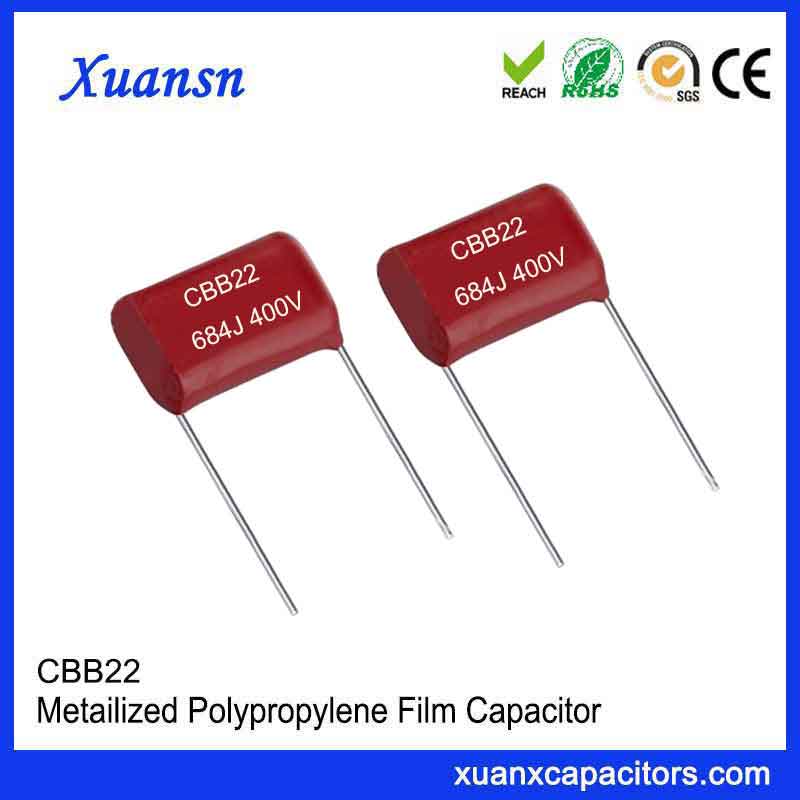

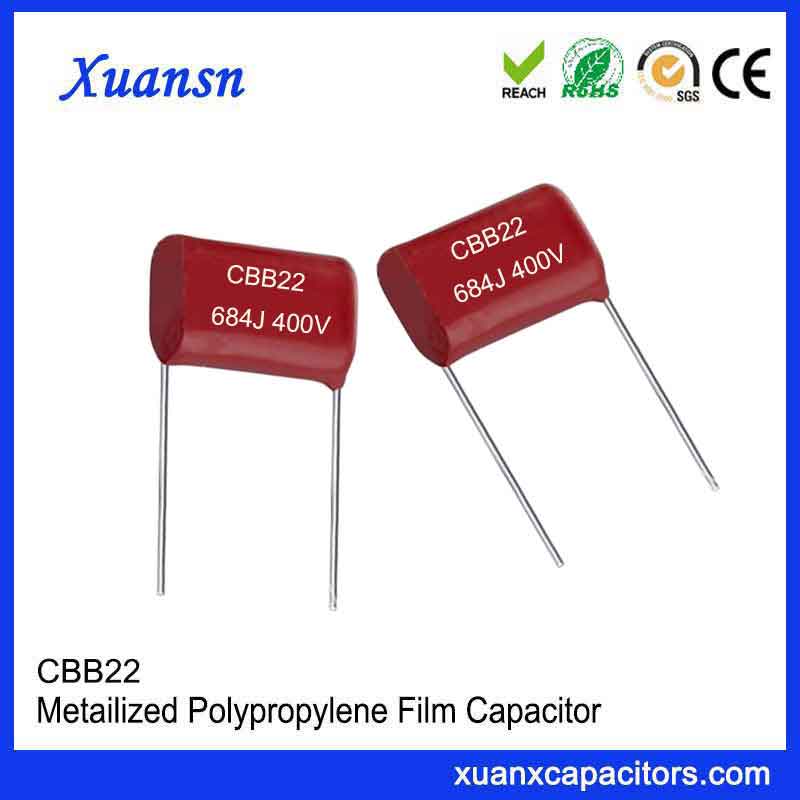

Cbb22 684j400V made in China Capacitor Is Used in The Coupling Circuit

Description

Cbb22 684j400V made in China Capacitor Is Used in The Coupling Circuit

Cbb22 684j400V Polypropylene capacitors made with metal film electrodes are called metallized polypropylene film capacitors,are electronic components that utilize a polypropylene film with metal film electrodes for energy storage and voltage regulation. They are designed to provide reliable and efficient performance in a wide range of electronic applications.

Cbb22 684j400V made in China Capacitor Is Used in The Coupling Circuit

Structure

These capacitors feature a cylindrical design that optimizes space utilization and allows for easy integration into various circuit layouts. The core structure consists of a thin polypropylene film with a metallized layer deposited on one side, serving as the capacitor’s electrode. The other electrode is typically formed by an aluminum foil wrapped around the outside of the capacitor, creating a cylindrical shape. This structure ensures excellent electrical characteristics and durability.

Characteristics

Capacitance: Cbb22 684j400V Polypropylene capacitors have a capacitance value of 684j, indicating their ability to store a specific amount of electrical charge. This value determines the capacitor’s energy storage capacity.
Voltage Rating: These capacitors are rated at 400V, indicating the maximum voltage they can handle without experiencing significant performance issues or damage. It’s important to ensure that the voltage in the circuit does not exceed this rating to maintain reliable operation.
Low Losses: Cbb22 684j400V Polypropylene capacitors exhibit low losses, meaning they have minimal energy dissipation and high efficiency. This characteristic enables them to transfer electrical energy effectively and reduces power wastage.
Self-Healing Properties: These capacitors possess self-healing properties, which means that if a localized breakdown or short circuit occurs, the capacitor can recover and continue functioning. This feature enhances their durability and reliability, especially in applications where voltage spikes or overvoltage conditions may occur.
Stability: Cbb22 684j400V Polypropylene capacitors offer excellent stability, allowing for consistent performance over time and across varying operating conditions. They are capable of maintaining their electrical characteristics even when exposed to temperature fluctuations.

Applications

Cbb22 684j400V Polypropylene capacitors find application in various electronic systems, including:

Power Electronics: These capacitors are commonly used in power supply units, where they provide stable voltage regulation, filter out noise and ripple, and help maintain a reliable power output.
Motor Drives: Due to their low losses and high frequency capabilities, these capacitors are ideal for motor drives, where they help improve motor performance, reduce electrical noise, and enhance energy efficiency.
Audio Systems: The high stability and low losses of Cbb22 684j400V Polypropylene capacitors make them suitable for audio amplifiers and speaker crossovers. They contribute to better sound quality, improved signal filtering, and reduced distortion.
Lighting Circuits: These capacitors are used in lighting applications to improve power factor correction, reduce harmonics, and enhance overall energy efficiency in fluorescent lamps, LED drivers, and other lighting systems.
Electronic Devices: Cbb22 684j400V Polypropylene capacitors are also utilized in a wide range of electronic devices, such as televisions, computers, consumer electronics, and telecommunications equipment, where they provide reliable energy storage and voltage smoothing.

Film capacitor — CBB22

Application field

Manufacturing method of film capacitor：

♦ The usual method of making thin-film capacitors is to use aluminum and other metal foils as electrodes and plastic films to overlap and wind them together.

♦ There is also a manufacturing method for film capacitors, called Metallized Film. The method is to deposit a thin layer of metal on a plastic film by vacuum evaporation to serve as an electrode. In this way, the thickness of the electrode foil can be omitted, and the volume per unit capacity of the capacitor can be reduced. Therefore, the film capacitor can be easily made into a small and large-capacity capacitor.

♦ The common MKP capacitor is the name of the metalized polypropylene film capacitor (Metailized Polypropylene Film Capacitor), and the MKT is the name of the metalized Polypropylene Film Capacitor (Metailized Polyester).

Deliver,Shipping And Serving

Lead Time：	3^15day(In Stock Within 3 Days)
Pre-Sale Service：	Various Technical Support, Sairple Support, Sales Guidance
Customized Service：	Capacity, Voltage, Size, Trademark
Special Service：	Cut Feet, Bend Feet
Warranty：	Unconditional replenishment
