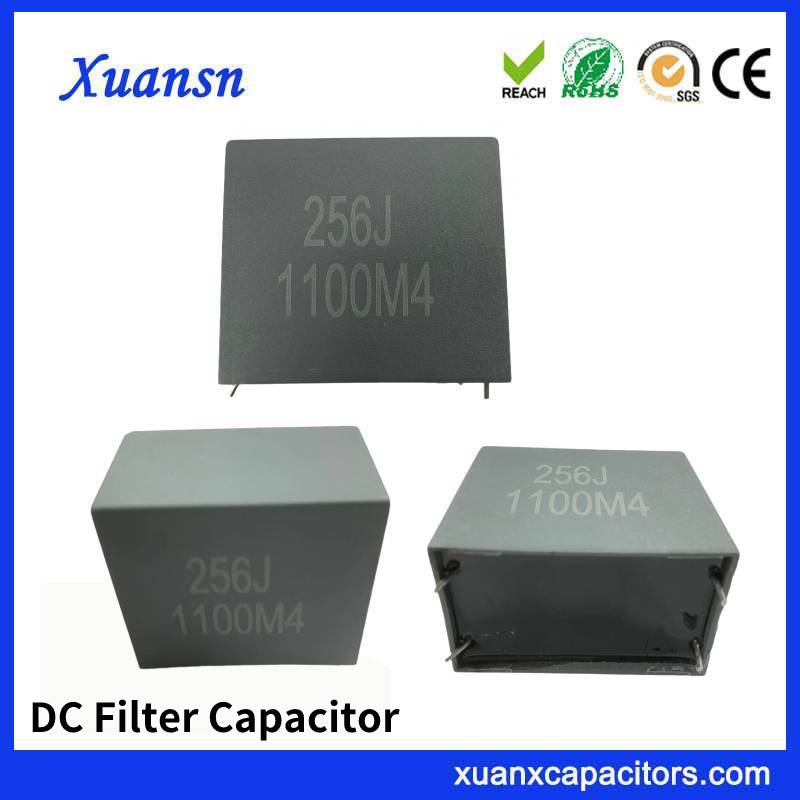

DC Filter Capacitor 256J High Ripple Current Energy Storage

Description

DC Filter Capacitor Definition:

DC Filter Capacitor, also known as DC Blocking Capacitor, are essential components used in electronic circuits to block direct current (DC) while allowing alternating current (AC) to pass through. They play a crucial role in filtering out unwanted DC components, reducing noise, and improving power quality in various electrical applications.

Structure and Construction:

Our DC Filter Capacitor are designed with precision and manufactured using high-quality materials. They consist of two conductive plates separated by a dielectric material, which enables the storage and discharge of electrical energy. The plates are typically made of metal foil or film, ensuring excellent conductivity, while the dielectric material provides insulation between the plates.

DC Filter Capacitor Characteristics:

• High Capacitance: Our DC Filter Capacitor offer a wide range of capacitance values to meet diverse application requirements. Higher capacitance allows for effective filtering of DC components and improved power quality.
• Low Equivalent Series Resistance (ESR): Low ESR ensures minimal power loss, reduced heat generation, and improved efficiency in filtering unwanted DC signals.
• Low Equivalent Series Inductance (ESL): Low ESL minimizes the adverse effects of inductive behavior, enabling better performance in high-frequency applications.
• High Voltage Ratings: Our capacitors are available with high voltage ratings, allowing them to withstand and filter out DC signals in various voltage levels.
• Low Self-Inductance: The low self-inductance design ensures faster response times and improved filtering performance.
• Excellent Temperature Stability: Our capacitors exhibit excellent stability across a wide temperature range, ensuring consistent performance under varying operating conditions.

Advantages:

• Improved Power Quality: DC Filter Capacitor effectively block DC components, reducing noise and voltage ripples, thus improving power quality in electrical circuits.
• Noise Reduction: By filtering out unwanted DC signals, these capacitors minimize electrical noise interference, resulting in cleaner and more reliable power transmission.
• Enhanced Efficiency: With their low ESR and ESL values, our capacitors minimize power losses and provide efficient filtering, thereby optimizing system performance.
• Protection for Sensitive Components: DC Filter Capacitors protect sensitive electronic components by preventing the passage of DC signals that could potentially damage or affect their operation.
• Long Service Life: Designed with high-quality materials, our capacitors offer excellent durability and a prolonged service life, reducing maintenance and replacement costs.

Disadvantages:

• Limited Frequency Range: DC Filter Capacitors are primarily designed for filtering DC signals and may have limitations in their frequency response for AC signals. Careful selection and matching with the application’s frequency requirements are essential.
• Space and Size Considerations: Depending on the required capacitance and voltage ratings, DC Filter Capacitors may occupy a significant amount of space in the circuit or system design. Proper consideration should be given to accommodate their size requirements.

Applications:

• Power supply units (SMPS, UPS)
• Motor drives and inverters
• Audio amplifiers and speaker systems
• Telecommunications equipment
• Industrial automation and control systems
• Renewable energy systems (solar, wind)
• Automotive electronics

Why Choose Us?

1. Reliable and High-Quality Products: We pride ourselves on delivering superior-quality DC Filter Capacitors manufactured using advanced processes and materials.
2. Application-Specific Solutions: Our team of experienced engineers can assist you in selecting the right capacitor based on your specific requirements and application needs.
3. Exceptional Customer Support: We are dedicated to providing excellent customer service, offering technical support, and addressing any inquiries or concerns you may have.
4. Competitive Pricing and Fast Delivery: We offer competitive pricing without compromising on quality. Additionally, our streamlined logistics processes ensure fast and reliable delivery of your orders.

Technical Analysis:

To provide a more in-depth analysis, let’s delve into the technical aspects of DC Filter Capacitors:

• Capacitance Selection: The appropriate capacitance value for your application depends on factors such as the level of DC voltage to be blocked, the frequency range of the AC signals, and the desired level of filtering. It is crucial to carefully choose the capacitance to achieve optimal performance.
• Voltage Ratings: Ensure that the DC Filter Capacitor’s voltage rating exceeds the maximum voltage level in your application to prevent voltage breakdown or damage to the capacitor.
• ESR and ESL Considerations: Low Equivalent Series Resistance (ESR) is desirable as it minimizes power losses and heat generation. Similarly, low Equivalent Series Inductance (ESL) reduces the adverse effects of inductive behavior, particularly in high-frequency applications.
• Temperature and Environment: Consider the operating temperature range of the capacitor and ensure it is compatible with your application’s environmental conditions. Extreme temperatures or harsh environments may impact the capacitor’s performance.
• Mounting and Connection: Determine the appropriate mounting and connection methods based on your system requirements. DC Filter Capacitors are available in various package types, such as through-hole or surface-mount, to facilitate easy integration into your circuit design.
• Safety and Compliance: Verify that the DC Filter Capacitors comply with industry standards and safety regulations to ensure the reliability and safety of your electrical systems.

Take the Next Step:

Upgrade your electrical systems with our high-quality DC Filter Capacitors, providing effective DC blocking, noise reduction, and improved power quality. Contact us today to discuss your specific requirements, consult with our technical experts, or request a quote. Experience the difference our reliable and efficient capacitors can make in your applications.
