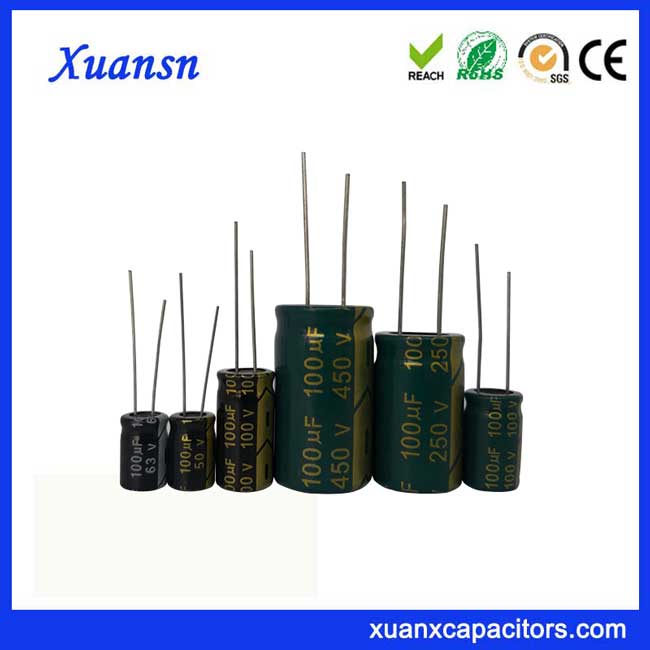

Electrolytic capacitor 100UF

Description

Electrolytic capacitor 100UF Features And Applications

Electrolytic capacitor 100UF, low ESR, large ripple current, voltage 6.3V to 500V, minimum diameter 4mm, maximum 22mm, high temperature resistance 125°C. Can meet the requirements of general power supply filtering. If a higher power system is required, a larger capacity capacitor should be selected to increase the input filtering network.

Electrolytic capacitor 100UF Series

◆ Conventional Capacitors（-40～+105℃，Life:2000~3000H）
◆ Low ESR Capacitors（-40～+105℃，Life:3000~4000H,100KHZ）
◆ Long Life Capacitors（-40～+105℃，Life:6000~9000H）
◆ High Temperature 125℃ Capacitors（-40～+125℃，Life:2000~3000H）
◆ Low Temperature -55℃（-55～+105℃，Life:3000~5000H）
◆ Low Leakage Current Capacitors（-40～+85℃，Life:2000~3000H）
◆ Non-Polar Capacitors（-40～+85℃，Life:2000~3000H）

Electrolytic capacitor 100UF Dimensions(mm)

■ 100UF6.3V:4*7,5*7,5*11mm
■ 100UF10V:4*7,5*7,5*11mm
■ 100UF16V:5*7,5*11,6.3*5mm
■ 100UF25V:5*11,6.3*7,6.3*11.5mm
■ 100UF35V:6.3*7,6.3*11.5,8*9,8*11.5mm
■ 100UF50V8*11.5mm
■ 100UF63V:8*14,10*12.5mm
■ 100UF100V:10*16,10*20.5mm
■ 100UF160V13*20.5mm
■ 100UF200V13*25mm
■ 100UF250V16*25mm
■ 100UF400V:13*50,16*36,18*32,22*25mm
■ 100UF450V:18*32,18*36mm

factory show

We are a supplier of electrolytic capacitor, and we have rich experiences in this field. Our daily production capacity can reach  7 million electrolytic capacitors, the sample period is 3 days, and the production cycle is 10 days. We will give you great support in terms of price, quality and delivery time.
