- 330uf 16v Bipolar Electrolytic Capacitor
- Load life : 3000 hours at +85°c
- Capacitance:0.47~4700UF
- Ripple Current:360marms
- Free Sample
- OEM/ODM services

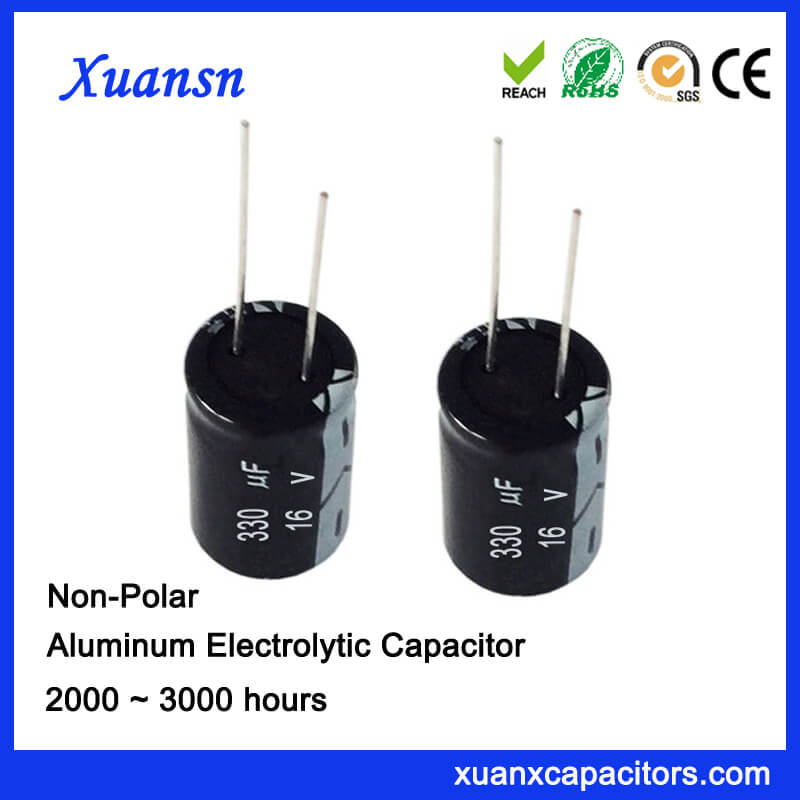

Factory Direct Selling 330UF16V Non-Polar Capacitor
Description
Factory Direct Selling 330UF16V Non-Polar Capacitor
- 330uf 16v non polarty radial aluminum electrolytic capacitor
- Load life of 2000 to 3000 hours at -40 ~ +105°c
- Size:10*16mm
- Rated Ripple Current:360mArms
- Offer OEM/ODM services
- Provide Free Sample
330UF16V Non-Polar Capacitor is our 2000 to 3000 hours non-polarity series. The non polarity radial alumium electrolytic capacitor is used in circuits with reversing polarity
Specification of non polarized aluminum electrolytic capacitors
Dimensions(mm)
| ΦD | 5 | 6.3 | 8 | 10 | 13 | 16 | 18 |
|---|---|---|---|---|---|---|---|
| P | 2.0 | 2.5 | 3.5 | 5.0 | 5.0 | 7.5 | 7.5 |
| Φd | 0.5 | 0.5 | 0.5 | 0.6 | 0.6 | 0.8 | 0.8 |
| α | 1.0 | 2.0 | |||||
| β | 0.5 | ||||||
Frequency coefficient of rated ripple current
| Frequency(Hz) | 50 | 120 | 1k | 10k | 100k |
|---|---|---|---|---|---|
| 0.47 to 47 uf | 0.75 | 1 | 1.35 | 1.55 | 2 |
| 68 to 680 uf | 0.8 | 1 | 1.25 | 1.34 | 1.5 |
| 1000 to 4700 uf | 0.85 | 1 | 1.1 | 1.13 | 1.15 |
Temperature Coefficient
| Tem(℃) | +45 | +60 | +85 |
|---|---|---|---|
| Factor | 1.6 | 1.35 | 1.0 |
Standard Ratings(at 120Hz, 85°c)
Our certifications
Xuansn factory show
Our advantage:
- We have a sound raw material cooperation system and cargo inspection mechanism.
- Products with high stability, high temperature, small size, small tolerance and so on.
- Product tolerances are strictly controlled between -15% to -10%.
- We have the world’s most advanced production equipment, and improve the management process.
- We can provide custom design of your needs and provide free sample for you.
- Our products comply with the RoHS Directive and the factory conforms to the ISO 9001 management system.
FAQ:
Q1. Can i have some samples for capacitors?
A: Yes, welcome sample to test and check quality,factory brand samples are free.
Q2. What about the lead time?
A: The sample needs 3-5days, the mass products needs 2 weeks for order quantity.
Q3. How do you ship the goods and how long does it take to arrive?
A: We usually ship by DHL,UPS,FEDEX or TNT, it usually takes 3-5 days to arrive.Airline and sea shipping also optional.
Q4. Is it OK to print my logo on capacitor?
A: Yes,pls inform us formally before our production and confirm the design firstly based on our sample
Q5. Do you offer guarantee for the products?
A: Yes,we offer 2-3years warranty to our products.
Q6. How to deal with the faulty?
A: If the item you purchase from factory beacuse of quality problems, you can return them to us for replacement or refund. And any items returned must be in their original condition to qualify for a refund or replacement.
If you have any interesting and problems, please contact us!
