Datasheet:
Feed Through Capacitor 0.5UF 150V Ceramic Media Filtering
Description
The feed through capacitor 0.5uf 150v is directly installed on the metal panel, so its grounding inductance is smaller, and there is almost no influence of lead inductance. In addition, its input and output ends are isolated by the metal plate, eliminating high-frequency coupling. These two characteristics determine the wear-through capacitor. The cardiac capacitor has a filtering effect close to the ideal capacitor.
It is a ceramic dielectric, and the capacity of the ceramic capacitor will change with the change of the ambient temperature, and this capacity change will affect the filter cutoff rate of the filter. The capacity temperature change rate of ceramic capacitors is determined by the ceramic dielectric itself. Therefore, it is very important to choose an appropriate ceramic medium. The capacitors used in the filter are generally ceramic capacitors. Due to its physical structure, such ceramic capacitors are also known as feedthrough capacitors.

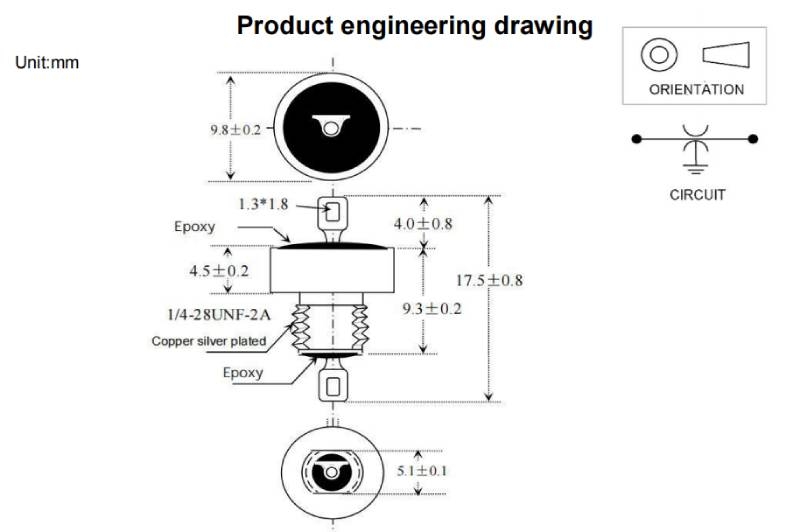

Reference picture
Feed through Capacitor 0.5uf 150v—Features
1.Almost no inductance
2. Filtering
Specification
| Capacitance Value | 0.5UF |
|---|---|
| Dissipation Factor | <3.5% |
| Tolerance | -20%+80% |
| Material | X7R |
| Rate Voltage | 150VDC |
| Withstand Voltage | 250VDC |
| Max Current(A) | 15 |
| Insulation resistance (100VDC) | 1000mΩ |
| Temperature Range | -55~+125℃ |
| Installation torque | 0.8N·M |
| Welding Temperature | ≤300℃ |
| Welding Time | 3S |
| Part No.: | XSL1/4-28UNF-2A-019 |
