- 100uf 10v aluminum electrolytic capacitor
- Load life: 3000 hours at +105°c
- MOQ: 1000PCS
- Free Sample
- ODM/OEM services
High Frequency 10V 100UF Electrolytic Capacitor wholesale
Description

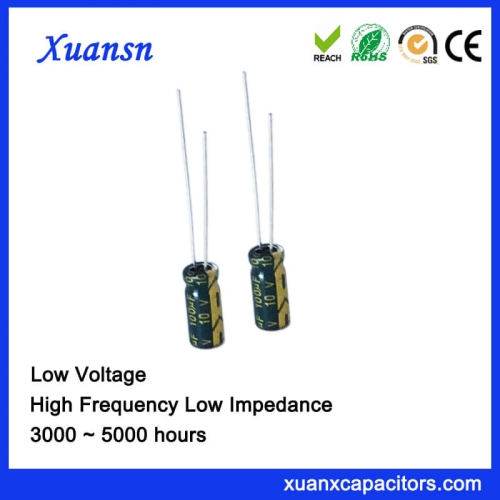

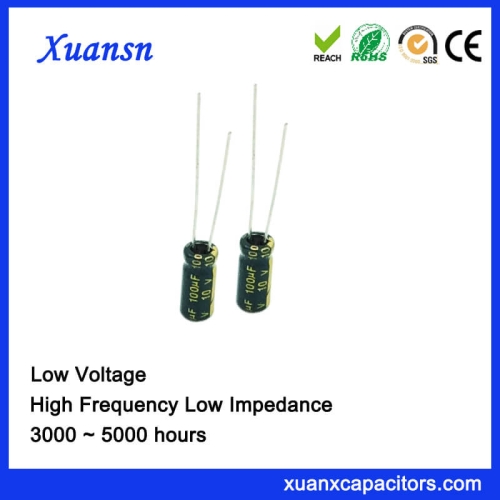

High Frequency 10V 100UF Electrolytic Capacitor
High Frequency 10V 100UF Electrolytic Capacitor is our low impedance electrolytic capacitor series. Its laod life is 3000hours at 120Hz 105℃
High Frequency 100UF 10V Electrolytic Capacitor, its size is 5*11mm, its impedance is 1.3Ω at 20℃ 100kHz, and its ripple current are 1471mArms at 85℃ 120Hz and 221mAmrs at 85℃100kHz.
The low voltage high frequency capacitor is suitable for outdoor led power supply,m charger, adapter, speaker and digital products.
Specification of low voltage high frequency aluminum electrolytic capacitor
Dimensions(mm)
| ΦD | 5 | 6.3 | 8 | 10 | 13 | 16 | 18 |
|---|---|---|---|---|---|---|---|
| P | 2.0 | 2.5 | 3.5 | 5.0 | 5.0 | 7.5 | 7.5 |
| Φd | 0.5 | 0.5 | 0.5 | 0.6 | 0.6 | 0.8 | 0.8 |
| α | 1.0 | 2.0 | |||||
| β | 0.5 | ||||||
Frequency coefficient of rated ripple current
| Frequency(Hz) | 50 | 120 | 1k | 10k | 100k |
|---|---|---|---|---|---|
| 0.47 to 47 uf | 0.70 | 0.85 | 0.90 | 0.95 | 1.00 |
| 100 to 470 uf | 0.75 | 0.90 | 0.95 | 0.98 | 1.0 |
| 1000 to 10000 uf | 0.80 | 0.95 | 0.97 | 0.99 | 1.0 |
Temperature Coefficient
| Tem(℃) | +45 | +65 | +85 |
|---|---|---|---|
| Factor | 1.6 | 1.35 | 1.00 |
Standard Ratings(at 120Hz, 85°c)
Key Features:
- High-Frequency Performance: Our capacitor is engineered to provide exceptional performance at high frequencies, making it suitable for applications such as power supplies, audio equipment, RF circuits, and high-frequency filters. It ensures reliable energy storage and delivery in these demanding scenarios.
- Voltage Rating: With a voltage rating of 10V, this capacitor can handle voltages up to 10 volts safely and reliably. It is designed to meet the requirements of low-voltage circuits, providing stable operation and ensuring compatibility with a wide range of electronic systems.
- Capacitance: Featuring a capacitance value of 100µF, this capacitor offers sufficient charge storage capacity for your circuit. The high capacitance enables the effective filtering of noise and voltage stabilization, contributing to improved overall performance and stability.
- Electrolytic Construction: The capacitor utilizes electrolytic construction, consisting of an anode (aluminum foil), a dielectric layer (aluminum oxide), and a cathode (electrolyte). This construction ensures efficient energy storage and reliable operation.
- Temperature Range: Our capacitor is designed to operate within a wide temperature range, typically from -40°C to +105°C. This enables reliable performance in varying environmental conditions, making it suitable for applications that require stability across a broad temperature spectrum.
- Compact Design: With its compact form factor, this capacitor is suitable for surface-mount applications. It is designed for easy integration into printed circuit boards (PCBs), simplifying the assembly process and optimizing space utilization.
Applications:
- Power supplies
- Audio amplifiers
- RF transceivers
- High-frequency filters
- Industrial control systems
- Automotive electronics
- Telecommunications equipment
- And more
Our advantage:
- We have a sound raw material cooperation system and cargo inspection mechanism.
- Products with high stability, high temperature, small size, small tolerance and so on.
- Product tolerances are strictly controlled between -15% to -10%.
- We have the world’s most advanced production equipment, and improve the management process.
- We can provide custom design of your needs and provide free sample for you.
- Our products comply with the RoHS Directive and the factory conforms to the ISO 9001 management system.
FAQ:
Q1. Can i have some samples for capacitors?
A: Yes, welcome sample to test and check quality,factory brand samples are free.
Q2. What about the lead time?
A: The sample needs 3-5days, the mass products needs 2 weeks for order quantity.
Q3. How do you ship the goods and how long does it take to arrive?
A: We usually ship by DHL,UPS,FEDEX or TNT, it usually takes 3-5 days to arrive.Airline and sea shipping also optional.
Q4. Is it OK to print my logo on capacitor?
A: Yes,pls inform us formally before our production and confirm the design firstly based on our sample
Q5. Do you offer guarantee for the products?
A: Yes,we offer 2-3years warranty to our products.
Q6. How to deal with the faulty?
A: If the item you purchase from factory beacuse of quality problems, you can return them to us for replacement or refund. And any items returned must be in their original condition to qualify for a refund or replacement.
If you have any interesting and problems, please feel free to contact us!
