- Suited for the power adapter.
- Load life of 3000 to 5000 hours at +105°c.
- RoHS compliant.
- 220uf 100v aluminum electrolytic capacitor
- Size: 13*21
- Samxon quality.
- MOQ: 1000PCS.

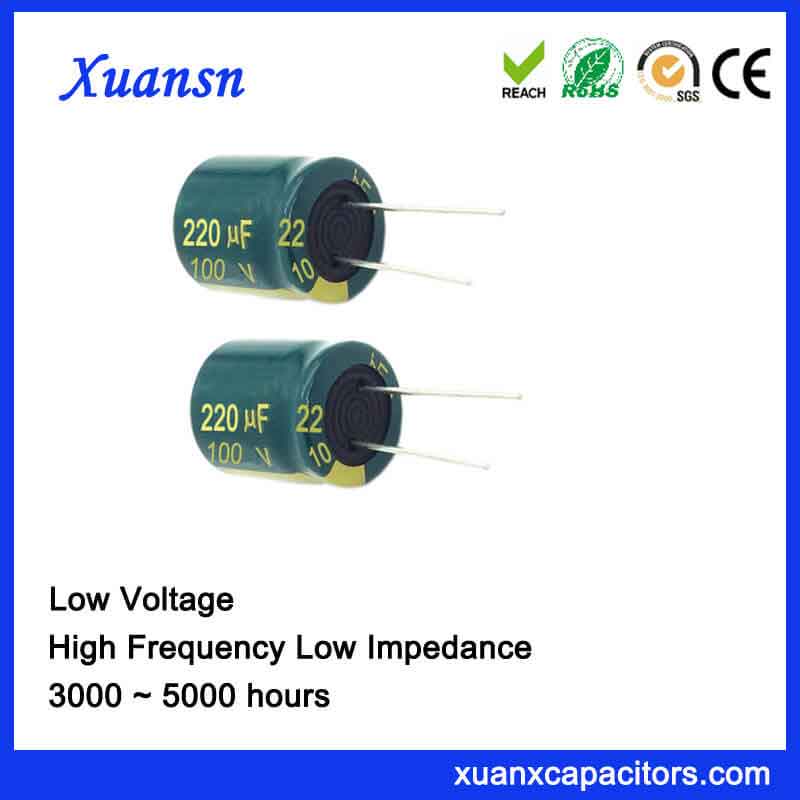

Low Impedance 220uF 100V Aluminum Electrolytic Capacitor
Description
220uF 100V Aluminum Electrolytic Capacitor Introduction
Welcome to our product page featuring the 220uF 100V aluminum electrolytic capacitor. This capacitor is designed to provide reliable energy storage for various electronic applications. Discover its key features, technical specifications, and benefits below.
High frequency and low impedance electrolytic capacitor is our main products.
Its materials are electrolytic paper, electrolytic solution and aluminum foil. It has Samxon quality, and also we can custom design and manufacturer products of your requirement.
High frequency electrolytic capacitors suitable for high frequency filtering , low impedance, improve power efficiency. and they have 3000 to 5000 hours load life at 105℃. they main used in power adapter.
Key Features
- High capacitance: With a capacitance of 220uF, this capacitor provides ample storage capacity for electrical charge.
- High voltage rating: The capacitor is capable of handling voltages up to 100V, ensuring reliable performance even in demanding applications.
- Aluminum electrolytic construction: The capacitor is built using aluminum electrolytic technology, known for its cost-effectiveness and ability to deliver high capacitance values.
220uF 100V Aluminum Electrolytic Capacitor Specifications
- Capacitance: 220uF (microfarads)
- Voltage rating: 100V
- Tolerance: ±20%
- Temperature range: -40°C to +105°C
- Dimensions:D13mm*L21mm
- Lifetime expectancy: 3000Hours
- Certifications: RoHS compliant

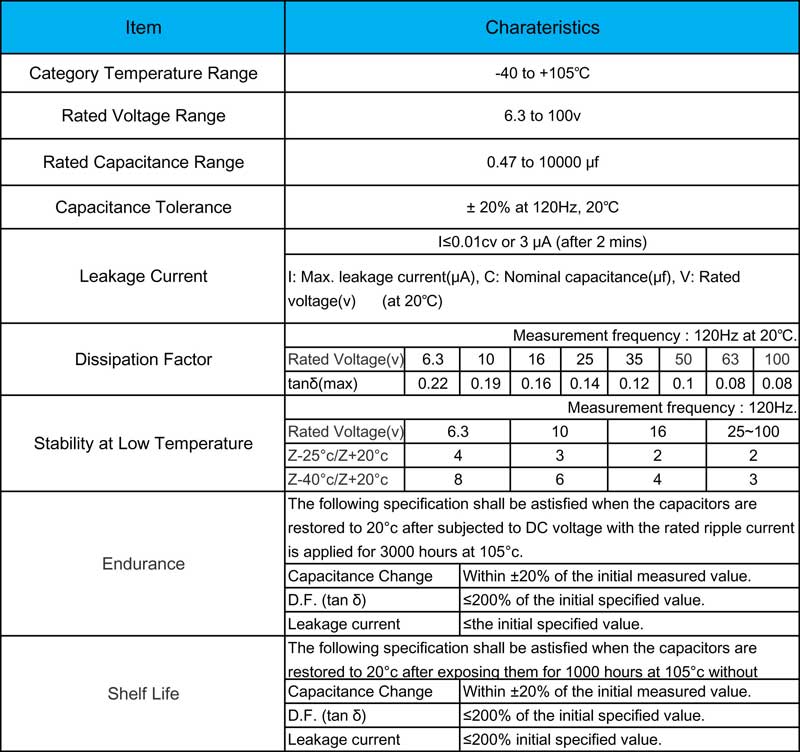

Specification of 220uF 100V Aluminum Electrolytic Capacitor
Dimensions(mm)
| ΦD | 5 | 6.3 | 8 | 10 | 13 | 16 | 18 |
|---|---|---|---|---|---|---|---|
| P | 2.0 | 2.5 | 3.5 | 5.0 | 5.0 | 7.5 | 7.5 |
| Φd | 0.5 | 0.5 | 0.5 | 0.6 | 0.6 | 0.8 | 0.8 |
| α | 1.0 | 2.0 | |||||
| β | 0.5 | ||||||
Frequency coefficient of rated ripple current
| Frequency(Hz) | 50 | 120 | 1k | 10k | 100k |
|---|---|---|---|---|---|
| 0.47 to 47 uf | 0.70 | 0.85 | 0.90 | 0.95 | 1.00 |
| 100 to 470 uf | 0.75 | 0.90 | 0.95 | 0.98 | 1.0 |
| 1000 to 10000 uf | 0.80 | 0.95 | 0.97 | 0.99 | 1.0 |
Temperature Coefficient
| Tem(℃) | +45 | +65 | +85 |
|---|---|---|---|
| Factor | 1.6 | 1.35 | 1.00 |

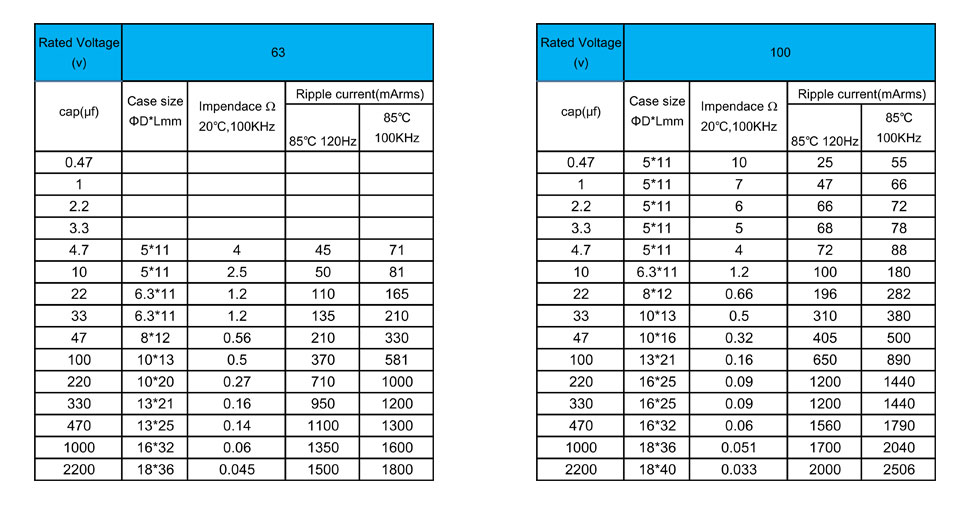

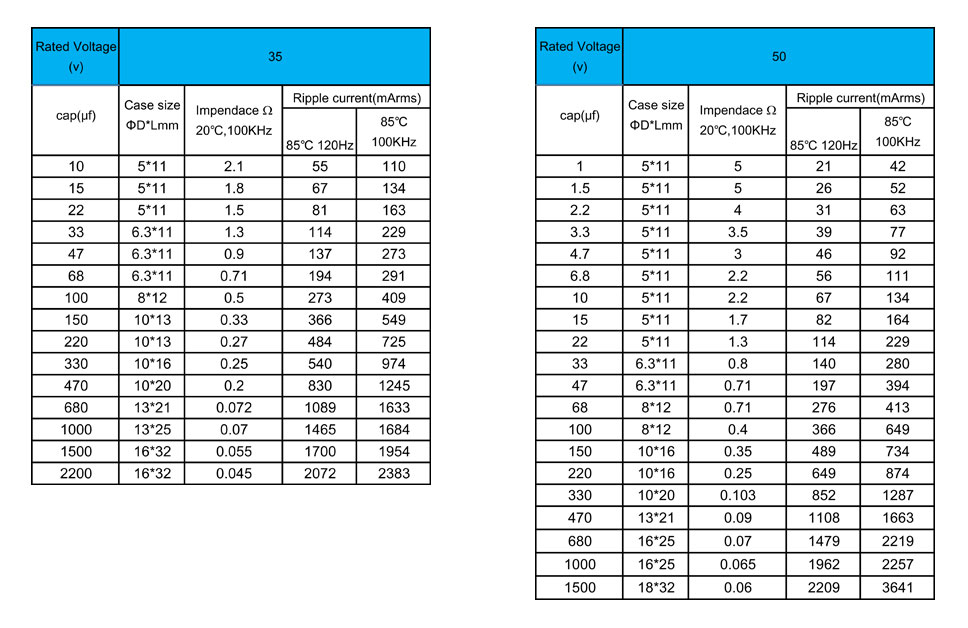

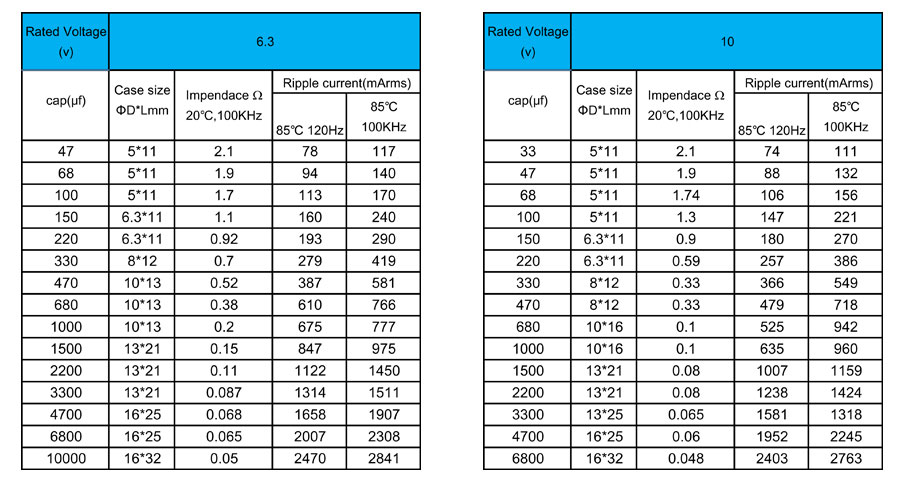

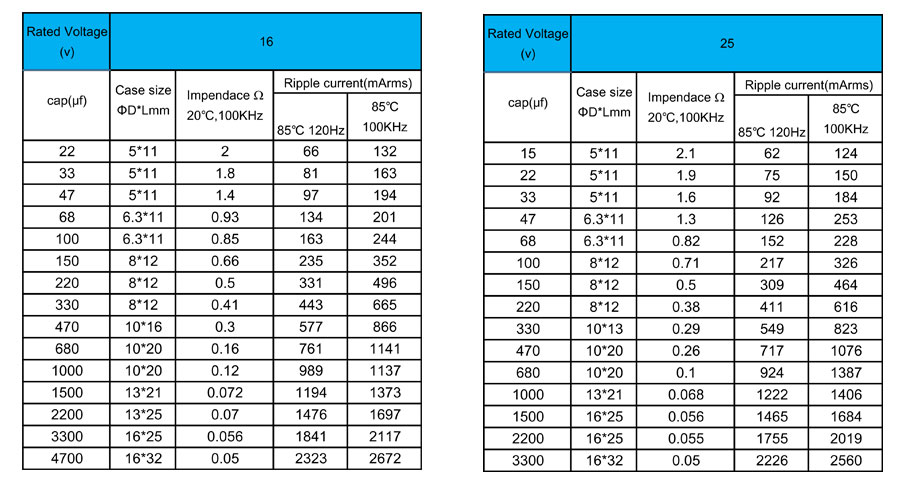

Standard Ratings(at 120Hz, 85°c)
Benefits and Advantages
- Efficient energy storage: This capacitor excels in storing and releasing electrical energy, making it ideal for applications where reliable energy storage is crucial.
- Versatile applications: The capacitor’s high capacitance and voltage rating make it suitable for a wide range of electronic circuits, including power supplies, audio equipment, and control systems.
- Enhanced circuit performance: By providing stable and consistent electrical energy, this capacitor helps improve the overall performance and reliability of your electronic projects.
Design and Quality
- Superior build quality: Crafted with meticulous attention to detail, this capacitor ensures long-lasting performance and durability.
- Robust construction: The aluminum electrolytic design guarantees excellent resistance to temperature fluctuations and reliable operation under varying environmental conditions.
- Low impedance: The capacitor’s low impedance design minimizes losses and maximizes efficiency, contributing to superior circuit performance.
Usage and Installation
- Proper polarity: Ensure you connect the capacitor correctly by observing the polarity markings. The positive terminal is typically marked with a stripe or a longer lead.
- Mounting options: This capacitor can be easily mounted on PCBs (Printed Circuit Boards) or within enclosures, offering flexibility in installation.
Customer Testimonials
- “I used this capacitor in my audio amplifier project, and it delivered outstanding performance with low noise levels.” – John D.
- “The capacitor’s high capacitance and voltage rating made it perfect for my power supply design. Very satisfied with its performance.” – Sarah M.
Frequently Asked Questions (FAQs)
- What is the purpose of this capacitor? This capacitor is designed to store and release electrical energy in electronic circuits, contributing to their proper functioning.
- What does the capacitance value of 220μF mean? The capacitance value represents the amount of electrical charge the capacitor can store. In this case, it can store up to 220 microfarads of charge.
- Can I use this capacitor in high-voltage applications? Yes, this capacitor is rated for a maximum voltage of 100V, making it suitable for various high-voltage electronic circuits.
- How does the aluminum electrolytic construction benefit the capacitor? The aluminum electrolytic construction ensures high capacitance values while maintaining cost-effectiveness. It also provides good temperature stability and long-term reliability.
- What are the recommended operating conditions for this capacitor? It is recommended to operate this capacitor within a temperature range of -40°C to +105°C and within the specified voltage limits for optimal performance.
- Is there any polarity consideration when connecting the capacitor? Yes, this capacitor is polarized, meaning it has a positive and negative terminal. Be sure to connect it correctly by observing the polarity markings, usually a stripe or a longer lead indicating the positive terminal.
- Can I use this capacitor in audio or power supply applications? Absolutely! This capacitor is well-suited for audio equipment, power supplies, control systems, and various other electronic projects where reliable energy storage is essential.
Conclusion
The 220uF 100V aluminum electrolytic capacitor offers a reliable and efficient solution for storing and releasing electrical energy in electronic circuits. With its high capacitance and voltage rating, it caters to a wide range of applications, providing enhanced performance and stability. Its aluminum electrolytic construction ensures long-term reliability, making it a dependable choice for your electronic projects. Order yours today and experience the benefits of this high-quality capacitor!
