CL11 polyester capacitor 3B222J foil type inductive structure manufacturer

CL11 polyester capacitor 3B222J foil type inductive structure manufacturer

  • Type: Polyester film capacitor
  • Capacity: 0.0022uf
  • P:5.0mm
  • Size: 8.0*14.0*5.5*0.5mm
  • Application: General

Description

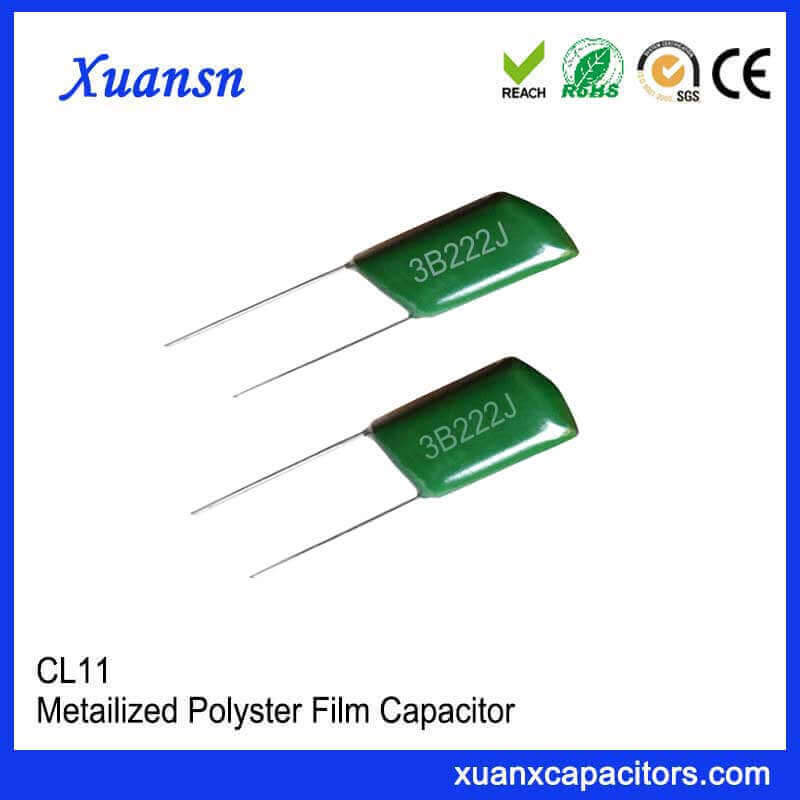

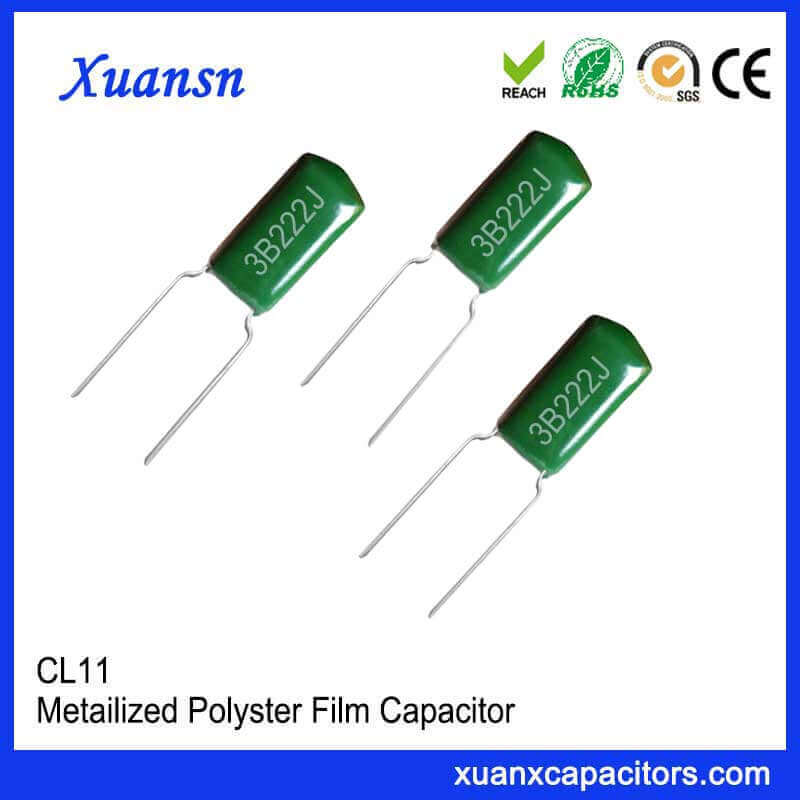

CL11 polyester capacitor 3B222J foil type inductive structure

CL11 high voltage polyester capacitor 3B222J has excellent mechanical properties, electrical properties and optical properties, so the application range is very wide.

CL11 polyester capacitor 3B222J foil type inductive structure

Type :  Mylar Capacitors
Colour:Grass green
Capacitance:0.0022uf (222)
Rated Voltage:1200V(3B)
Capacitance Tolerance: ±5%(J)
Lead Pitch(Mm):5.0mm
Temperature Range: -25 To 85°C
Rated Freq(HZ): 60HZ
Weight(G):

Size of CL11 1200V222J Film Capacitor

 Film capacitor

CL11 Dimensions

CL11 Dimensions

We are a supplier of electrolytic capacitor, and we have rich experiences in this field. Our daily production capacity can reach  7 million electrolytic capacitors, the sample period is 3 days, and the production cycle is 10 days. We will give you great support in terms of price, quality and delivery time.

And Support Customer’s Visit To The Factory
