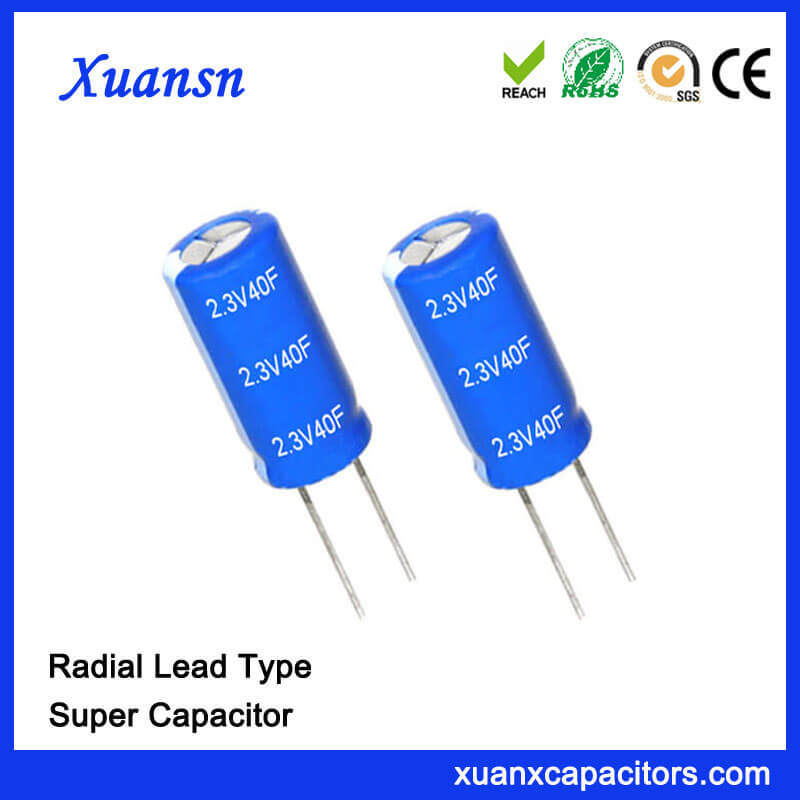

New Original 2.3V 40f ultra super capacitor

Description

New Original 2.3V 40f ultra super capacitor

Xuansn factory manufacturering and supply of New Original 2.3V 40f ultra super capacitor.

Opearing temperature : -25℃ ~ +65℃
Capacitance tolerance : -20% ~ +50%
Size : 12.5*30mm
Max ESR(AC) : 40(1kHzmΩ)
Max ESR(DC) : 60mΩ
Max Endurance Current: 0.78A
Max Peak Current: 10.95A
Max Leakage Current: 0.130(72hrs/mA)
Power Density: 1653(W/kg)
Max Energy: 0.0294(W.h)
Energy Density: 5.12(Wh/kg)

The 2.3V super capacitor is suitable for electric tool,soalr street light power supply and energy recovery.

Super Capacitor

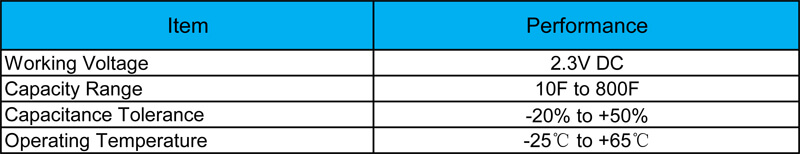

Specification of 2.3v supper capacitor

New Original 2.3V 40 Farad Super Capacitor

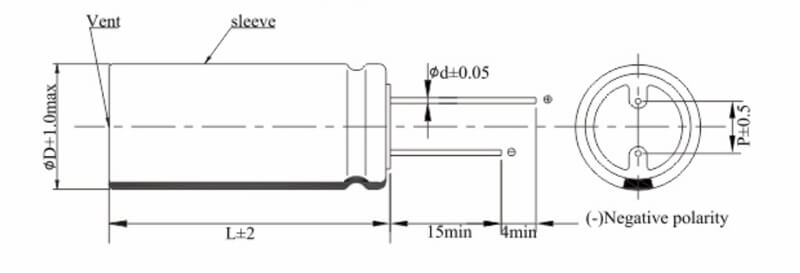

Lead Type Dimensions(mm)

2.3v supper capcitor construction

φD	P	φd
8	3.5	0.6
10 and 12.5	5.3	0.6
16 and 18	7.7	0.8

Standard Ratings

2.3v supper capacitor datasheet

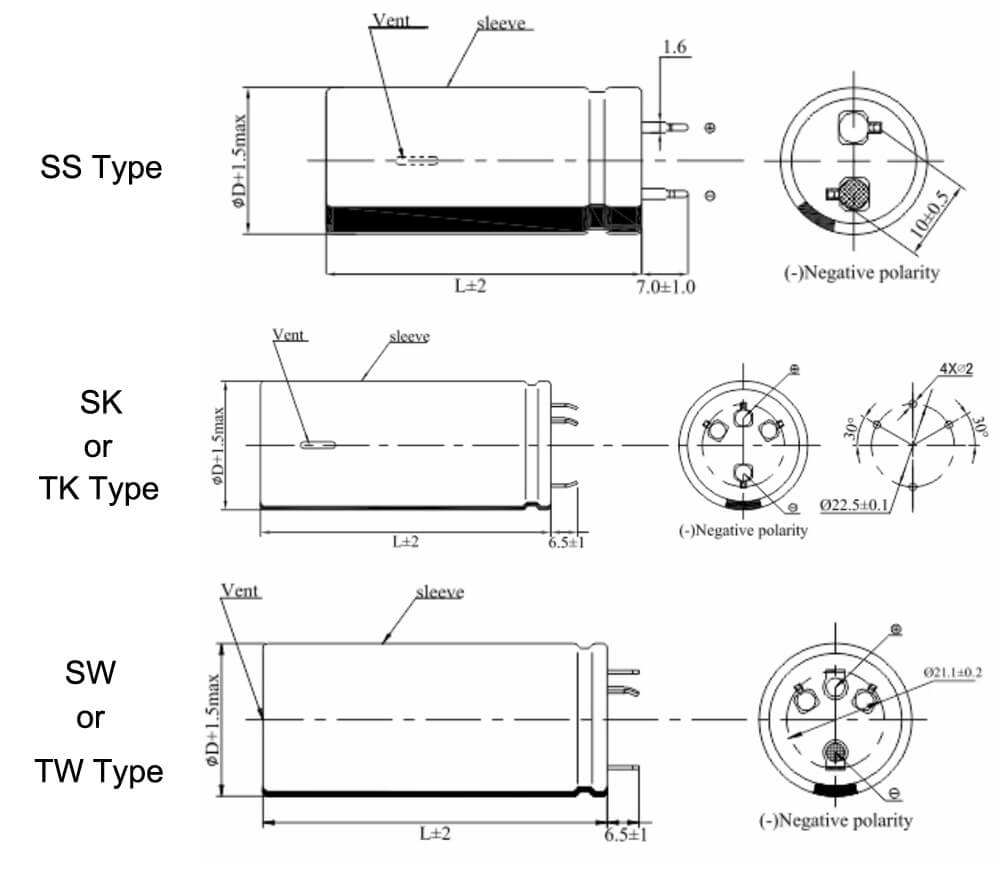

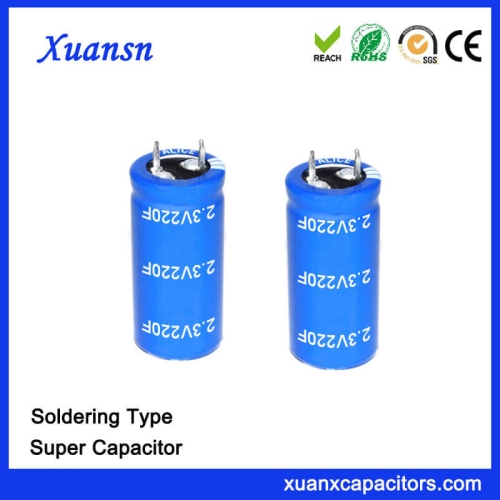

Soldering Type Dimensions(mm)

2.3v supper capcitor construction

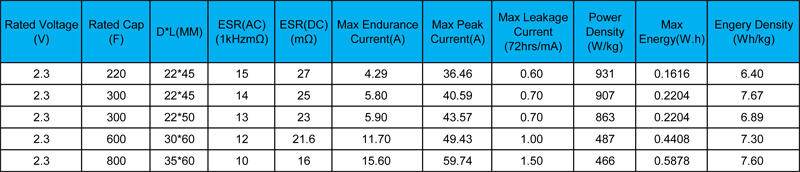

Standard Ratings

2.3v supper capcitor datasheet

Our advantage:

We have a sound raw material cooperation system and cargo inspection mechanism.
Products with high stability, high temperature, small size, small tolerance and so on.
Product tolerances are strictly controlled between -15% to -10%.
We have the world’s most advanced production equipment, and improve the management process.
We can provide custom design of your needs and provide free sample for you.
Our products comply with the RoHS Directive and the factory conforms to the ISO 9001 management system.

FAQ:

Q1. Can i have some samples for capacitors?

A: Yes, welcome sample to test and check quality,factory brand samples are free.

Q2. What about the lead time?

A: The sample needs 3-5days, the mass products needs 2 weeks for order quantity.

Q3. How do you ship the goods and how long does it take to arrive?

A: We usually ship by DHL,UPS,FEDEX or TNT, it usually takes 3-5 days to arrive.Airline and sea shipping also optional.

Q4. Is it OK to print my logo on capacitor?

A: Yes,pls inform us formally before our production and confirm the design firstly based on our sample

Q5. Do you offer guarantee for the products?

A: Yes,we offer 2-3years warranty to our products.

Q6. How to deal with the faulty?

A: If the item you purchase from factory beacuse of quality problems, you can return them to us for replacement or refund. And any items returned must be in their original condition to qualify for a refund or replacement.
