polypropylene film capacitor 102j630v

polypropylene film capacitor 102j630v

  • Type: metalized polypropylene film capacitor
  • class:CBB21
  • Capacitance:1000pF(102)
  • Rated Voltage: 630V
  • Lead pitch(mm):10.0mm
  • Color: Orange red
  • Customized Service: Capacity, Voltage, Size, Trademark
  • Warranty: Unconditional replenishment

Description

polypropylene film capacitor 102j630v Features And Applications

Polypropylene film capacitor 102j630v, low loss, low inherent temperature rise, flame retardant epoxy powder coating, good self-healing, non-inductive structure. Used for interference suppression, bypass, smoothing circuits, etc.

polypropylene film capacitor 102j630v Parameter

Type :  metalized polypropylene film capacitor
class:CBB21
Colour:Orange red
Capacitance:1000pF(102)
Rated Voltage:630V
Capacitance Tolerance: ±5%(J),±10%(K)
Temperature Range: -25 To 85°C

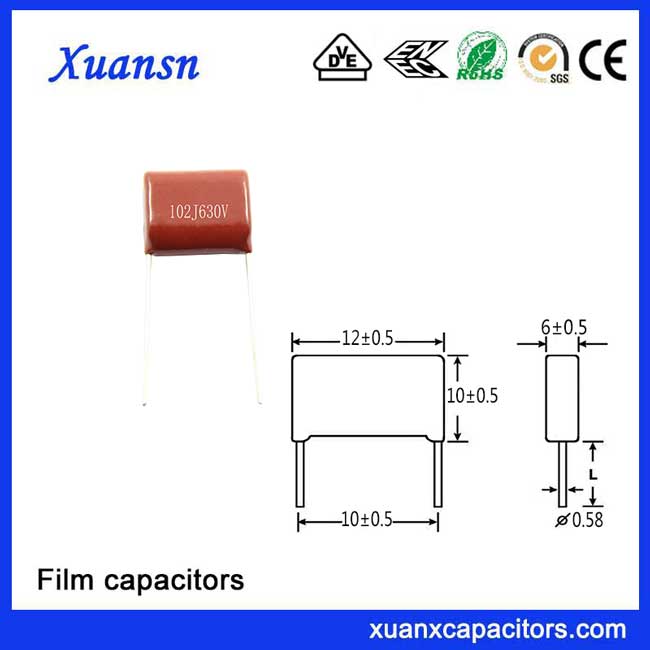

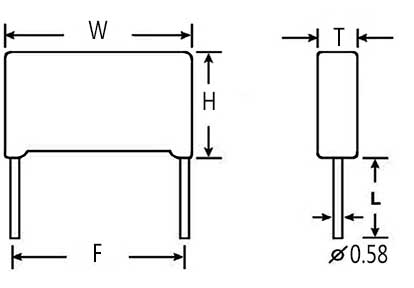

w:12mm
H:10mm
F:10mm
T:6mm

polypropylene film capacitor 102j630v

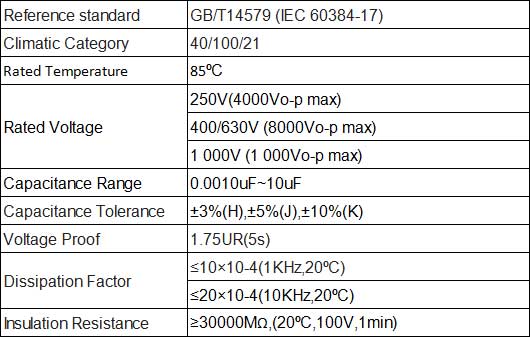

Technical specifications

polypropylene film capacitor 102j630v

Email: [email protected]

Ph(whatsapp): +86-18825879082

Skype: Coco.PSH

Website: xuanxcapacitors.ru
