- Type: Film Capacitor
- Deviation: ±5% (J) ±10% (K)
- Operating Temperature：-40℃-105℃
- Features：High stability
- Application：inverters, industrial and high-end power supplies
PV inverter 186J 1100M4 film capacitor energy storage
Description
186J 1100M4 film capacitor have excellent electrical characteristics, high stability and long life, which can meet a variety of different applications. Capacitor manufacturers are continually improving this product to provide greater capacitance in a smaller package size. Capacitor manufacturers can optimize the characteristics of metallized film capacitors by selecting the appropriate dielectric for the specific application.

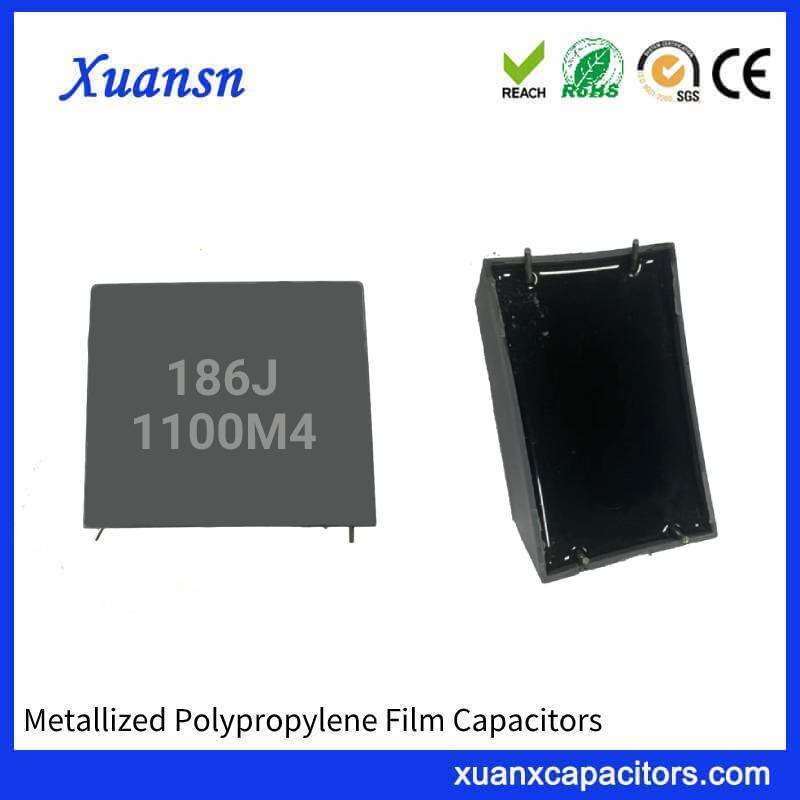

186J 1100M4 Film Capacitor
specifications
| Reference Standard | GB/T 17702(IEC 61071) |
|---|---|
| Climate category | 40/105/56 |
| Operating temperature range | -40℃-105℃ |
| Rated voltage | 500Vdc,600Vdc,800Vdc,900Vdc,1000Vdc,1100Vdc,1200Vdc |
| Capacitance deviation | J（±5%）,k(±10%) |
| Voltage proof | 1.5UN(10s) |
| Insulation resistance | ≧1000S(20℃,100Vdc,1min) |
| Shell color | Black,White,Red |
| Self inductance | ＜1nH per mm of lead spacing |
| Maximum peak current | ↑=C.dv/dt |
| Expected life |
100000hrs@Un,θHS=70℃
|
Features:
1.Metallized polypropylene membrane structure
2.good electrical properties
3.Plastic case package (UL94V-0), resin filled
4.High-performance DC filter applications
(Such as: inverters, industrial and high-end power supplies, solar inverters, charging piles, etc.)
Polypropylene film capacitors are available with voltage ratings of 400vac or higher to meet the requirements of industrial three-phase applications and professional equipment. They can also be used in switching power supplies, frequency discrimination and filter circuits, and energy storage and sample-and-hold applications. Additionally, ac and pulse capacitors can be optimized for applications where steep pulses are present, such as electronic ballasts, motor controllers, switch mode power supplies (smps), crt televisions and monitors or buffers. These applications typically employ bimetallized polypropylene film structures with low loss dielectrics capable of withstanding high voltage and high pulse load applications at high frequencies.
