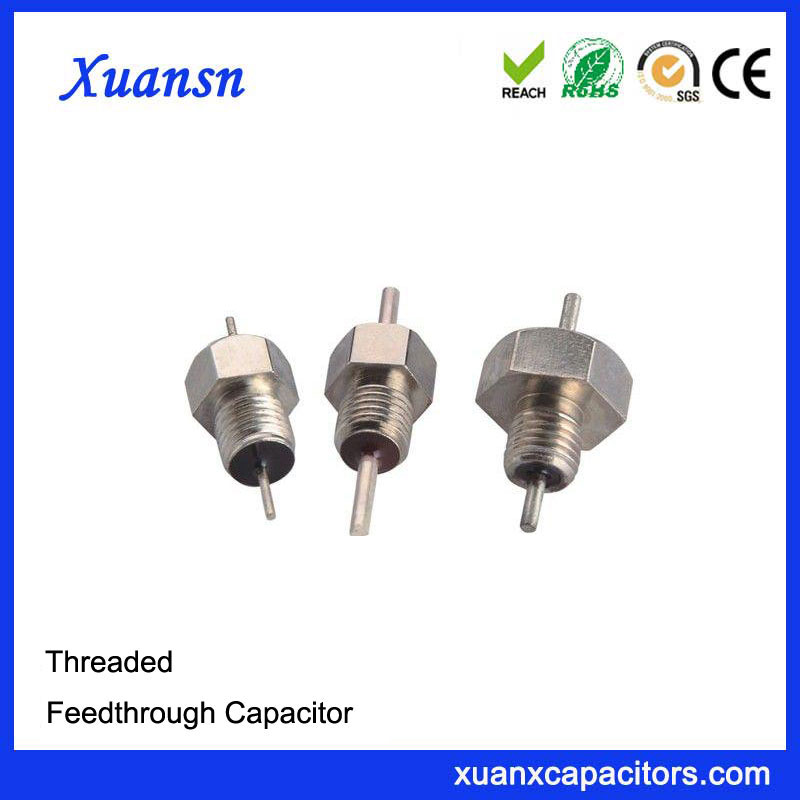

Screw Type Ceramic Feedthrough Capacitor 100PF 100VDC

Screw Type Ceramic Feedthrough Capacitor 100PF 100VDC

  • Type: Feedthrough capacitor
  • Capacitance: 100pF
  • Rated Voltage: 100VDC
  • Temperature range: -55 to 125°C
  • Insulation resistance:3000MΩ
  • Customized Service: Capacity, Voltage, Size, Trademark
  • Warranty: Unconditional replenishment

Description

Screw Type Ceramic Feedthrough Capacitor 100PF 100VDC Features And Applications

Screw Type Ceramic Feedthrough Capacitor 100PF 100VDC,It is a feedthrough capacitor that is directly mounted with a shielded housing. It is characterized by easy installation, damage to capacitors, greater capacitance, and more stable performance. It is mainly used for signal, data line, DC power line filtering. Micro-extrusion mounting or screw mounting is ideal for applications where soldering is not suitable and suitable for microwave and other high frequency applications.

Welded Feedthrough capacitor 10nf1kv Parameter

Type: Feedthrough capacitor
Capacitance: 100pF
Rated voltage: 100VDC
Temperature range: -55 to 125°C
Tanδ:<3.5%
Tolerance:-20~+80%
Material properties:X7R
​Insulation resistance:3000MΩ

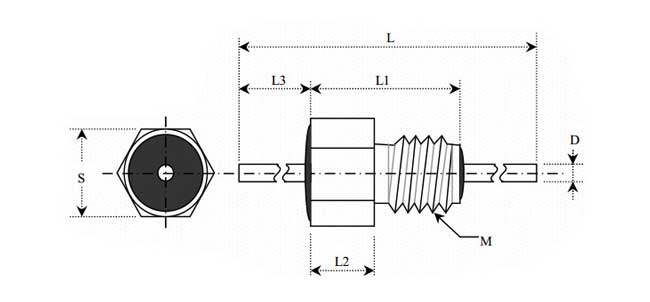

S:3.3mm
M:2.5*0.45mm
L1:6.6mm
L2:3.0mm
  Screw Type Ceramic Feedthrough Capacitor 100PF 100VDC
