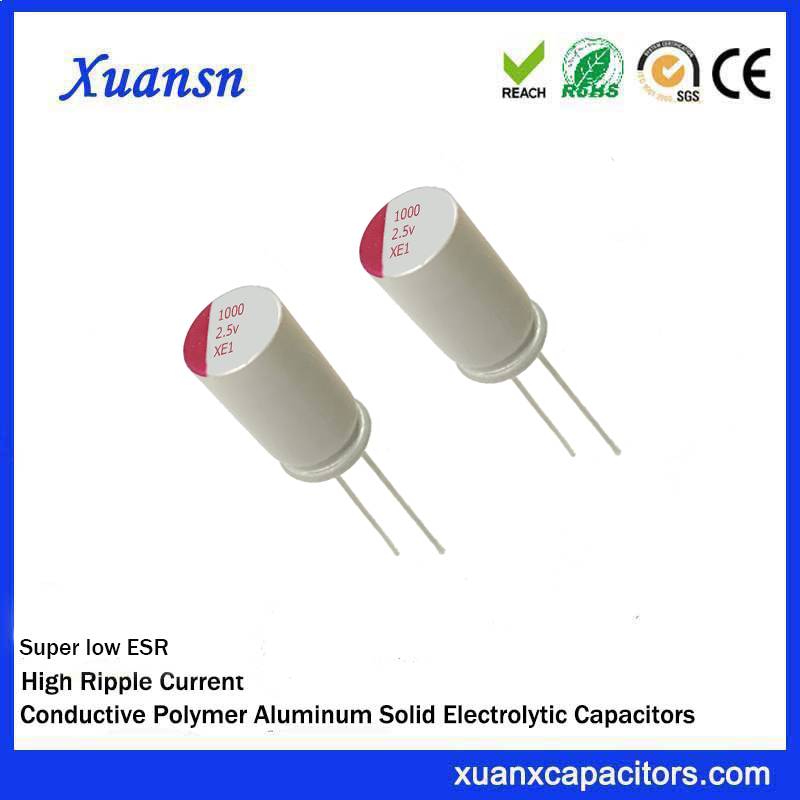

Solid Capacitor 1000uf 2.5v radial type vendor XUANSN

Solid Capacitor 1000uf 2.5v radial type vendor XUANSN

  • Type: Radial type
  • Operating Temperature:-55℃~+105℃
  • Life:2000hours
  • Applications:fast charging sources, 5G base stations, PC motherboards,etc.
  • Manufacturer:XUANSN

Description

The full name of solid capacitor 1000uf 2.5v is: solid aluminum electrolytic capacitors. The biggest difference between it and ordinary capacitors (ie, liquid aluminum electrolytic capacitors) is the use of different dielectric materials. The dielectric material of liquid aluminum capacitors is electrolyte, while the dielectric material of solid capacitors is conductive polymer materials.

XE1 Series-Solid Capacitor 1000uf 2.5v

● Super low ESR, High ripple current
● Load life of 2000hours at 105℃
● RoHS Compliant

 Item Characteristics
Temperature Range -55~+105℃
Specification 1000UF2.5V
Capacitance Tolerance ±20% (M)                                                    (at 20°C, 120Hz)
Dissipation Factor (tanδ) tanδ (max.)=0.08(2.5~7.5V)                tanδ (max.)=0.12(10~25V)             (at 20°C, 120Hz)
Leakage Current I≤0.2CV or 500μA(take the maximum)
Where, I: Max.leakage current (μA), C: Nominal capacitance (μF),V:Rated voltage (V),(at 20 °C after 2 minutes)
Low Temperature Characteristics (Max. Impedance Ratio) Z(-25°C)/Z(+20°C)≦1.25
Z(-40°C)/Z(+20°C)≦1.25                      (at 100kHz)
Endurance The following specifications shall be satisfied when the capacitors are restored to 20°C after DC voltage plus the rated ripple current is applied for 2,000 hours at 105°C.

Capacitance Change :≤±20% of the initial value
D.F. (tanδ):≤150% of the initial specified value
ESR:≤150% of the initial specified value
Leakage Current :≤The initial specified value

Damp heat(steady state) The specifications listed below shall be satisfied when the capacitors are restored to 20℃ after application of rated voltage for 1000 hours at 60℃,90%~95%RH.

Capacitance Change :≤±20% of the initial value
D.F. (tanδ):≤150% of the initial specified value
ESR:≤150% of the initial specified value
Leakage Current :≤The initial specified value

Surge Voltage Surge voltage = rated voltage * 1.15 (V)

The capacitors shall be subjected to 1000 cycles each consisting of charge with the surge voltages specified at 105℃ for 30 seconds through a protective resistor(Rc=1kΩ)and discharge for 5 minutes 30 seconds

Capacitance Change :≤±20% of the initial value
D.F. (tanδ):≤150% of the initial specified value
ESR:≤150% of the initial specified value
Leakage Current :≤The initial specified value

Resistance to soldering heat Measurement for solder temperature profile shall be made at the capacitor top and the terminal.

Capacitance Change :≤±20% of the initial value
D.F. (tanδ):≤150% of the initial specified value
ESR:≤150% of the initial specified value
Leakage Current :≤The initial specified value

Dimensions

Solid Capacitor 1000uf 2.5v

Rated Ripple Current Correction Coefficient

Frequency (Hz) 120Hz≦f<1kHz 1kHz≦f<10kHz 10kHz≦f<100kHz 100kHz≦f<500kHz
Coefficient 0.05 0.30 0.70 1.00

Parameters Table

Rated voltage(V) Rated Capacitance(μf) Case size     D*L(mm)

      ESR(mΩ)

at 20℃ 100kHz

Leakage Current

(μA)

Rated ripple current(mArms/105℃/100kHz)
2.5 1000 8*9 8 500 5900
2.5 1000 8*12 8 500 6100

How to order

XE1  102  M   0E   D08L09   T

XE1  102  M   0E   D08L12   T

XE1:Series code

102:Capacitance code

M:Capacitance tolerance code

0E:Voltage code

D08L09:Size code

T:Packing number
