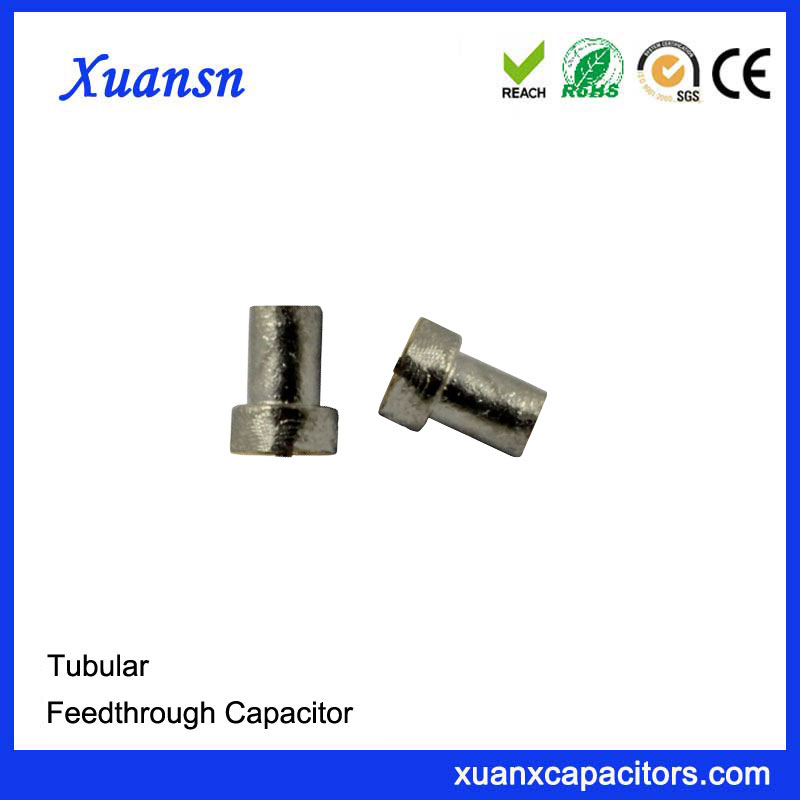

Tubular feedthrough capacitor 300pf 500VDC

Tubular feedthrough capacitor 300pf 500VDC

  • Type: Feedthrough capacitor
  • Capacitance: 300pF
  • Rated Voltage: 5000VDC
  • Temperature range: -55 to 125°C
  • Insulation resistance:3000MΩ
  • Customized Service: Capacity, Voltage, Size, Trademark
  • Warranty: Unconditional replenishment

Description

Tubular feedthrough capacitor 300pf 500VDC Features And Applications

Tubular feedthrough capacitor 300pf 500VDC,It belongs to ceramic capacitors. Because it is directly mounted on a metal panel, its grounding inductance is smaller and there is almost no influence of lead inductance. In addition, his input and output are isolated by metal plates, eliminating high frequency coupling. These two characteristics determine the filter effect of the feedthrough capacitor close to the ideal capacitance.

Parameter

Type: Feedthrough capacitor
Capacitance: 300pF
Rated voltage: 500VDC
Temperature range: -55 to 125°C
Tanδ:<3.5%
Tolerance:-20~+80%
Material properties:X7R
​Insulation resistance:3000MΩ

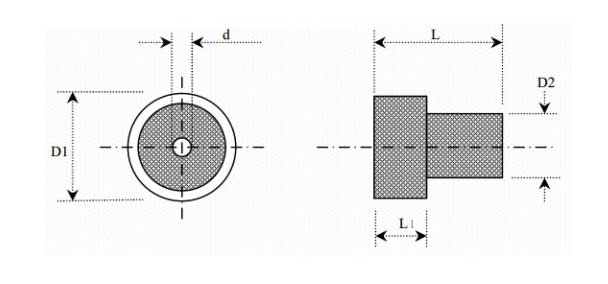

D1:4.3mm
D2:3.0mm
d:1.1~1.6mm
L:2.5~2.7mm
L1:1.0~1.2mm
Tubular feedthrough capacitor 300pf 500VDC
