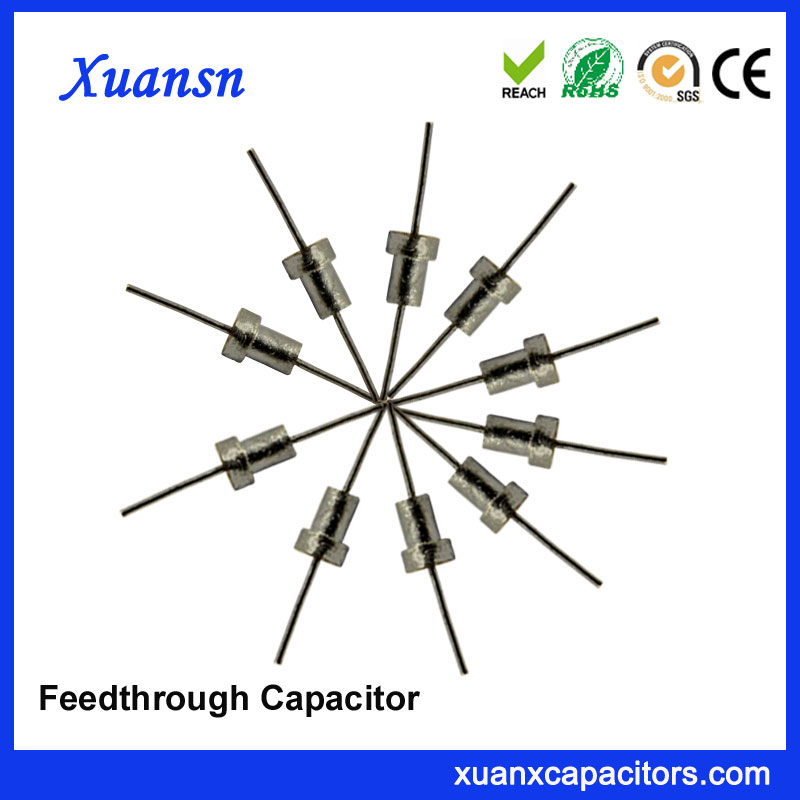

Welded Feedthrough capacitor 10nf1kv

Welded Feedthrough capacitor 10nf1kv

  • Type: Feedthrough capacitor
  • Capacitance: 10nF
  • Rated Voltage: 1000VDC
  • Temperature range: -55 to 125°C
  • Insulation resistance:3000MΩ
  • Customized Service: Capacity, Voltage, Size, Trademark
  • Warranty: Unconditional replenishment

Description

Welded Feedthrough capacitor 10nf1kv Features And Applications

Welded Feedthrough capacitor 10nf1kv,The high temperature construction prevents backflow of the mounting tin.Mainly used for filtering signals, data lines and AC power lines, telecommunication equipment, transmission equipment, microwave filters, industrial computers, composite circuit filter components.

Small size and efficient use of space, it is an ideal product for small space installation.

Welded Feedthrough capacitor 10nf1kv Parameter

Type: Feedthrough capacitor
Capacitance: 10nF
Rated voltage: 1000VDC
Temperature range: -55 to 125°C
Tanδ:<3.5%
Tolerance:-20~+80%
Material properties:X7R
​Insulation resistance:3000MΩ

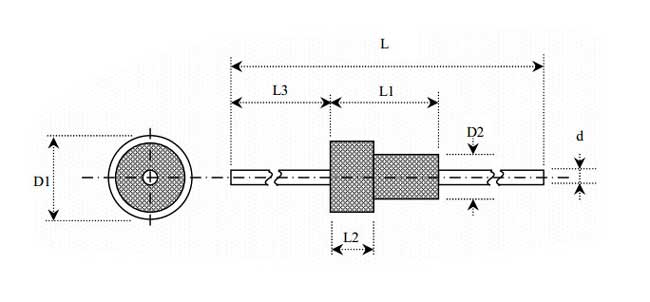

D1:5.0mm
D2:3.8mm
d:0.8mm
L1:4.1mm
L2:2.0mm
Welded Feedthrough capacitor 10nf1kv
