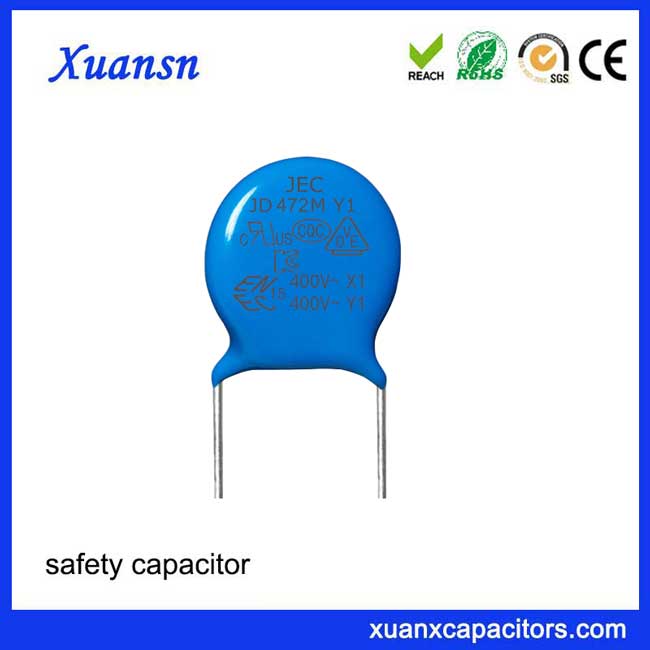

y1 ceramic capacitor 472M400V

y1 ceramic capacitor 472M400V

  • Type: safety capacitor
  • Capacitance: 4700pF(472)
  • Rated Voltage(AC): 400VAC
  • Tolerance:±20%(M)
  • Withstand voltage(AC):4000VAC
  • Color: Blue
  • Special Service: Cut Feet, Bend Feet
  • Warranty: Unconditional replenishment

Description

y1 ceramic capacitor 472M400V Features And Applications

y1 ceramic capacitor 472M400V,has two temperature characteristics of Y5U and Y5V. Ceramic dielectric with high dielectric constant and flame retardant epoxy resin package for suppression of power supply electromagnetic interference, filtering, antenna coupling, jumper and bypass circuits. Meets AC capacitor standards and is certified for safety.

y1 ceramic capacitor 472M400V Parameter

Type :  safety capacitor
Colour:Blue
Capacitance:4700pF(472)
Rated Voltage(AC):400VAC
Withstand voltage(AC):4000VAC
Tolerance:±20%(M)
Material Properties:Y5U,Y5V
Temperature range: -25 to 85°C
Tanδ:0.025~0.05
D:15/12mm
F:9.5mm
T:6.0mm
Rated Freq(HZ): 1KHZ
Certification:UL,SEMKO,SEV,FIMKO,NEMKO,DEMKO,VDE.CQC.KC
